Manufacturer: Schaeffler FAG

Type: Adapter sleeve H

Model: H 3128

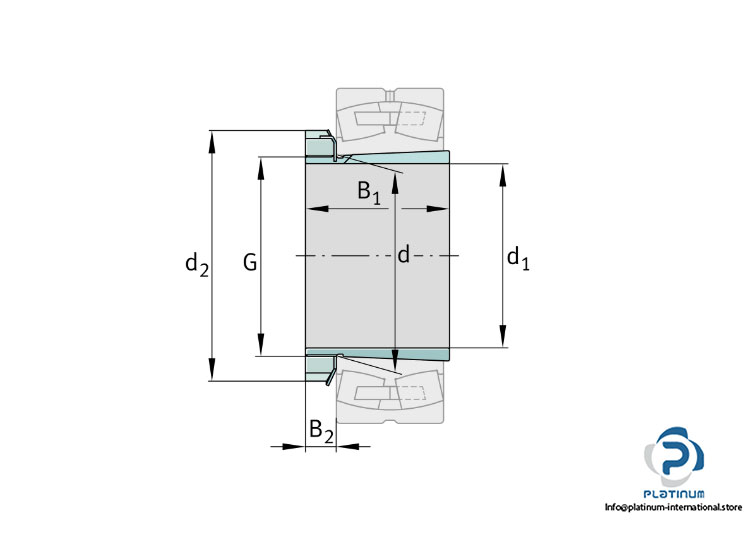

Dimensions:

Bore Diameter d₁: 125 mm

Sleeve length B₁: 97 mm

Bore diameter bearing d: 140 mm

Outer diameter nut d₂: 180 mm

Width nut and lock B₂: 24 mm

Thread G: M140x2

Taper: 1:12

Locknut: KM28

Lock washer: MB28
