SKF AH 3034 Withdrawal Sleeve
New
Available on request
Withdrawal Sleeve
The SKF AH 3034 Withdrawal Sleeve features a 160 mm bore diameter, 170 mm outside diameter small taper, and M 180×3 thread, designed for easy and efficient bearing assembly and disassembly in industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

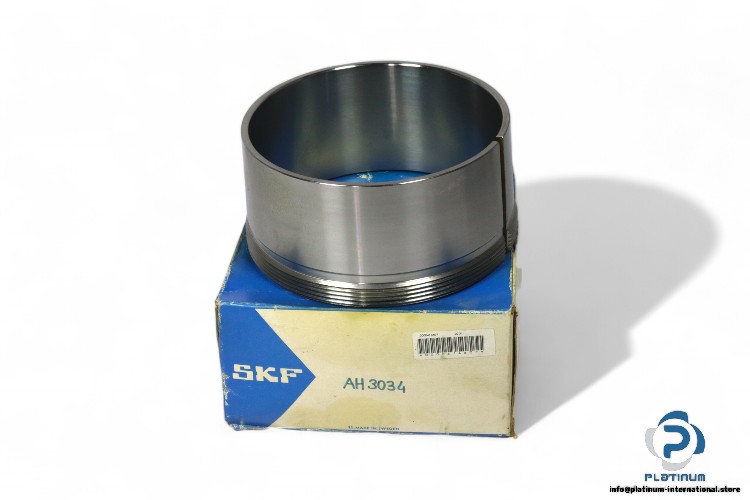

SKF AH 3034 Withdrawal Sleeve
The SKF AH 3034 Withdrawal Sleeve is designed to facilitate the mounting and dismounting of bearings. It features a small taper for easy assembly, ensuring reliable performance in demanding applications that require precision and ease of use.
Manufacturer: SKF
Type: WITHDRAWAL SLEEVE
Model: AH 3034
This SKF withdrawal sleeve provides high precision for easy and effective assembly and disassembly of bearings, helping reduce downtime and improve operational efficiency.

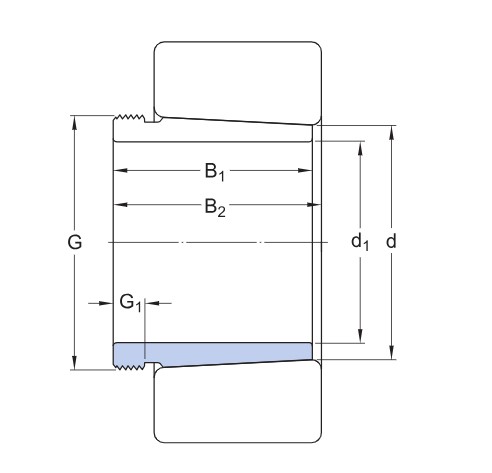

| Bore Diameter (d1) | 160 mm |
| Width | 85 mm |
| Outside Diameter Small Taper (d) | 170 mm |
| Thread (G) | M 180x3 |
| Length of Thread (G1) | 17 mm |
| External Taper | 1:12 |
