SKF H 309 Adapter Sleeve

Manufacturer: SKF

Type: Adapter sleeve H

Model: H309

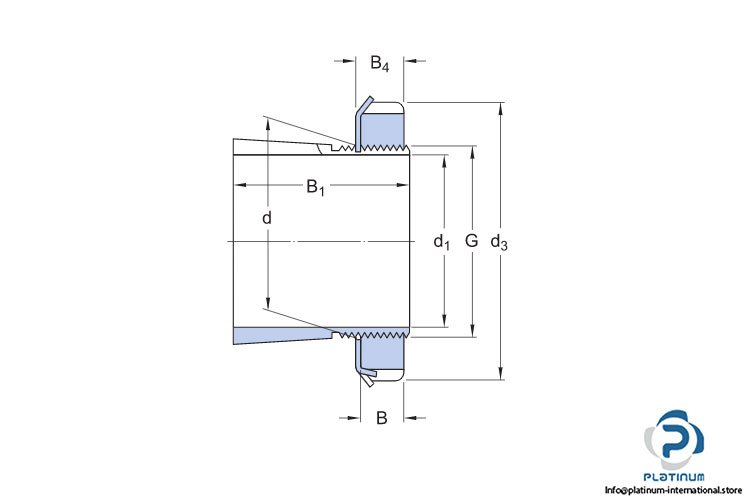

Dimensions:

Bore Diameter d₁: 40 mm

Outside diameter small taper d: 45 mm

Outer diameter lock nut d₃: 65 mm

Sleeve length B₁: 39 mm

Width lock nut including lock washer B₄: 11 mm

Thread G: M45x1.5

External taper: 1:12

Locknut: KM9

Lock washer: MB9
