Manufacturer: Schaeffler FAG

Type: Yoke Type Track Roller

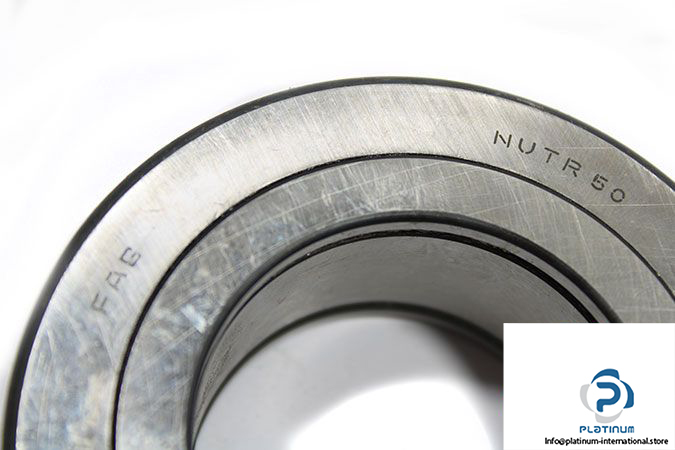

Model: NUTR 50

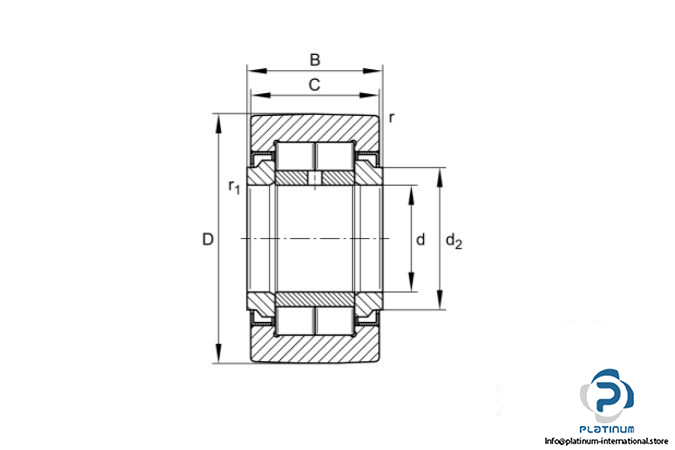

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width outer ring C: 30 mm

Width of the bearing B: 32 mm

Basic load ratings, radial:

Dynamic C_r: 58000 N

Static C_0r: 86000 N

Fatigue load limit C_ur: 12200 N

Permissible dynamic load outer ring, radial F_r: 32500 N

Permissible static load, radial F_0r: 63000 N

Speed on permanent grease lubrication: 1300 rpm

Weight: 0.97 Kg
