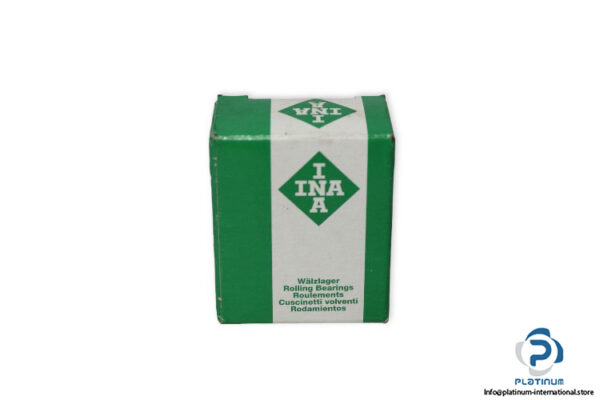

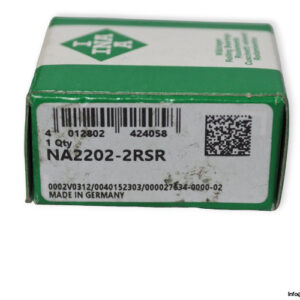

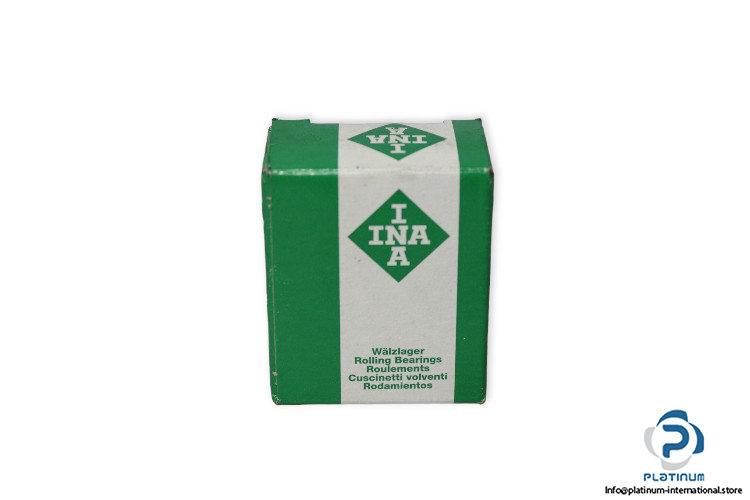

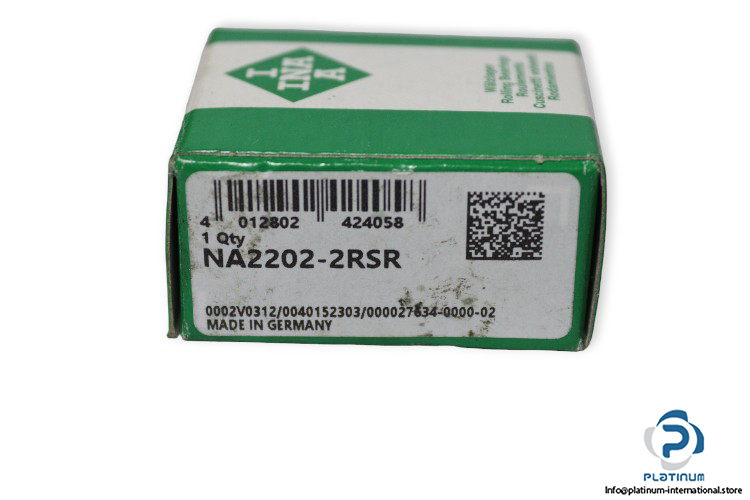

INA NA2202-2RSR Yoke Type Track Roller

Manufacturer: Schaeffler INA
Type: Needle Roller Bearing
Model: NA2202 2RSR

Dimensions
Bore diameter d: 35 mm
Raceway diameter inner ring: 20 mm
Width, outer ring C: 13.8 mm
Minimum chamfer dimension r_min: 0.6 mm
Basic load ratings:
Dynamic C_r: 6700 N
Static C_0r: 9500 N
Fatigue load limit C_ur: 1400 N
Speed on permanent grease lubrication: 3400 rpm
Sealing: 2RSR, Lip seal on both sides
