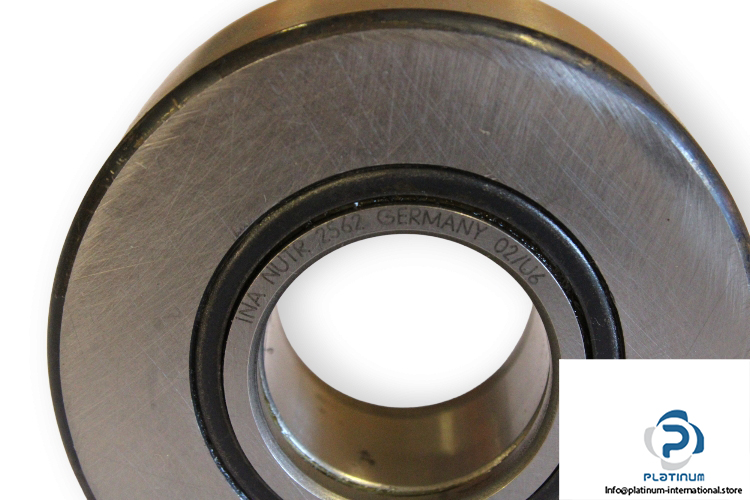

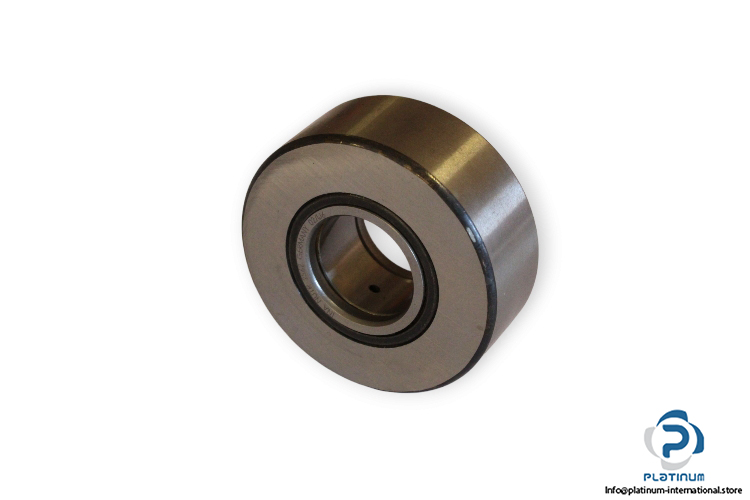

INA NUTR2562 Yoke Type Track Roller

Manufacturer: Schaeffler INA
Type:  Yoke type track rollers NUTR, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides
Model: NUTR 2562

Dimensions:
Bore Diameter d: 25 mm
Outer diameter D: 62 mm
Width, inner ring B: 25 mm
Width outer ring C: 24 mm
Basic load ratings:
Dynamic C: 35500 N
Static C₀: 54000 N
Fatigue load limit P_u: 7000 N
Permissible dynamic load outer ring, radial F_r: 54000 N
Permissible static load, radial F_0r: 54000 N
Speed on permanent grease lubrication: 4200 RPM
