NTN NATR50LL/3AS Yoke Type Track Roller

Manufacturer: NTN

Type: Yoke type track rollers

Model: NATR50 LL/3AS

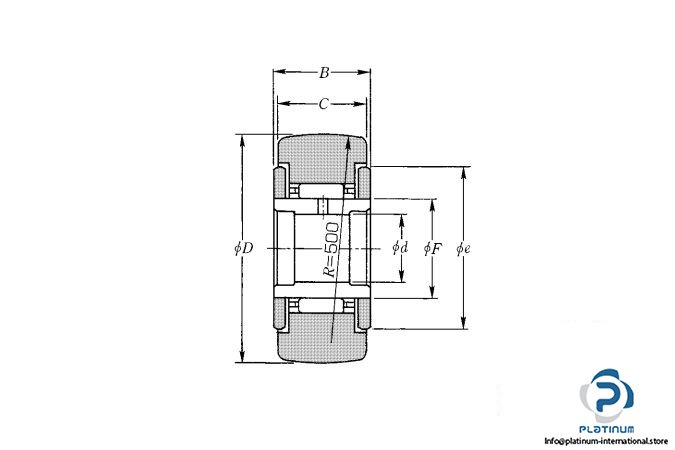

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width outer ring C: 30 mm

Width inner ring B: 32 mm

Basic load ratings:

Dynamic C: 53000 N

Static C₀: 108000 N

Track load capacity: 11400 N

Limiting speed Grease lubrication: 2500 rpm

Weight: 0.99 Kg
