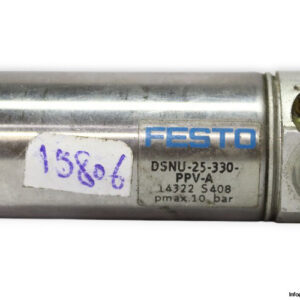

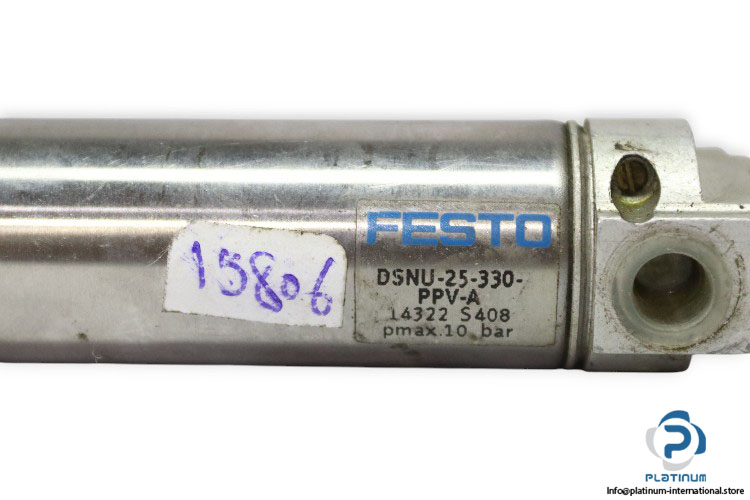

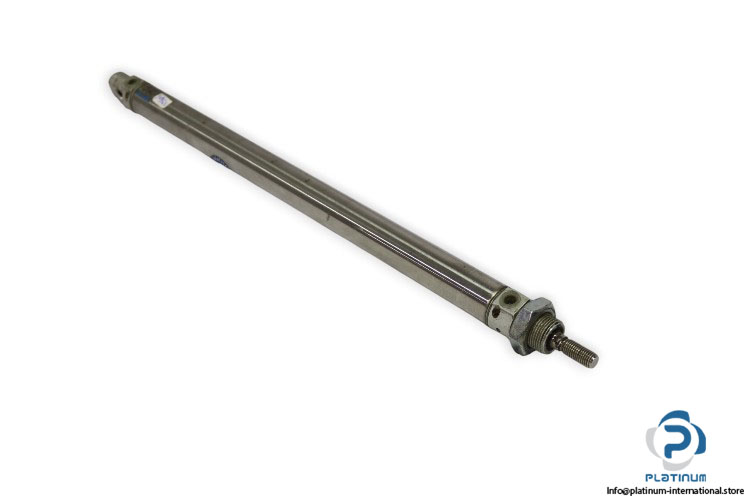

Festo ISO Cylinder DSNU-25-330-PPV-A

The Festo DSNU-25-330-PPV-A is a high-quality ISO standard pneumatic cylinder engineered for precise and reliable performance in industrial automation. Designed with robust stainless steel materials and adjustable cushioning, it ensures smooth operation and durability under demanding conditions.

Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-330-PPV-A
Part No.: 14322
Ref. code: S408

Technical Information

• Stroke Length: 330 mm
• Piston Diameter: 25 mm
• Rod Diameter: 10 mm
• Pneumatic Connection: G1/8
• Mode of Operation: Double Acting
• Operating Medium: Compressed Air
• Max. Operating Pressure: 10 bar
• Shape: Circular
• Ambient Temperature: -20 to 80 °C
• Cushioning: Pneumatic cushioning, adjustable at both ends
• Piston Rod Thread: Male
• Rod Direction: One Side
• Material Cover: Wrought Aluminum Alloy
• Material Seals: NBR
• Material Piston Rod: High-Alloy Stainless Steel
• Material Cylinder Barrel: High-Alloy Stainless Steel
