Festo DNC-32-25-PPV-A ISO Cylinder
Used
In stock26 unitsReady to ship
ISO Cylinder
FESTO DNC-32-25-PPV-A ISO Cylinder is a high-precision pneumatic actuator with a 32 mm bore and 25 mm stroke. Featuring a double-acting operation and a robust square design, it ensures efficient force transmission. Equipped with a G 1/8 pneumatic connection and a male piston rod end, it is ideal for automation and industrial applications.1/825mm32mmaActuatorAutomationboreComponentsconnectionControlCylinderDNC-32-25-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOMotionPneumaticPrecisionSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

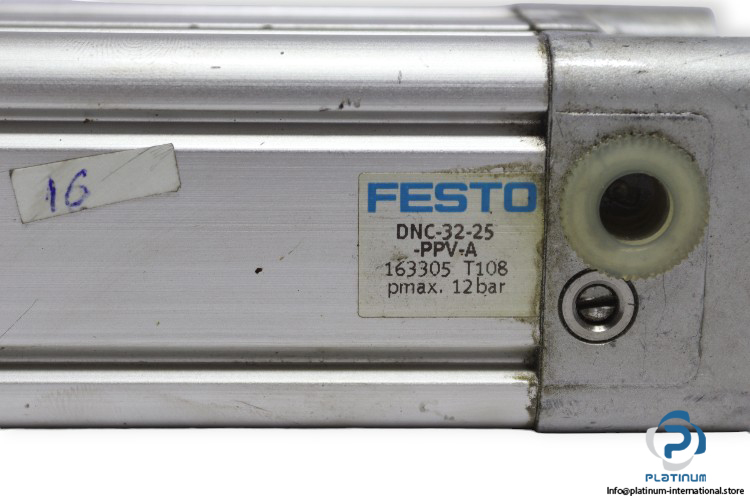

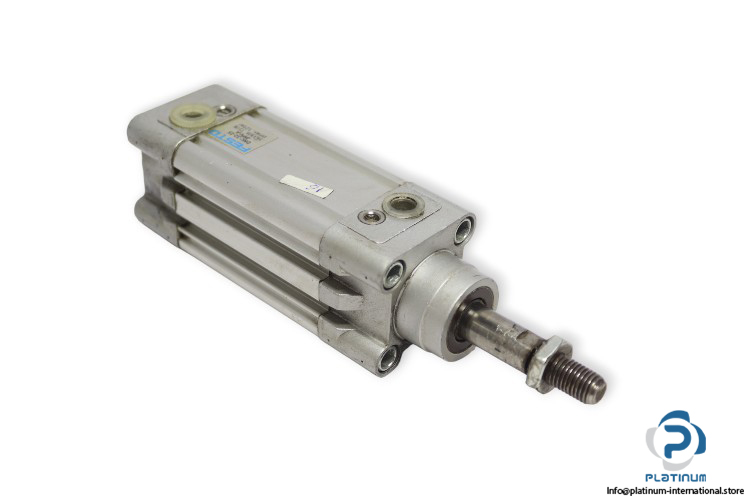

FESTO DNC-32-25-PPV-A ISO Cylinder
The FESTO DNC-32-25-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial applications. With a robust square design and a double-acting operation, this cylinder ensures efficient force transmission and durability for demanding automation environments.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-32-25-PPV-A
Part No.: 163305
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 25 mm |
| Bore x Stroke | 32 x 25 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 44 x 140 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
