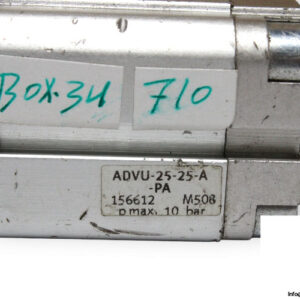

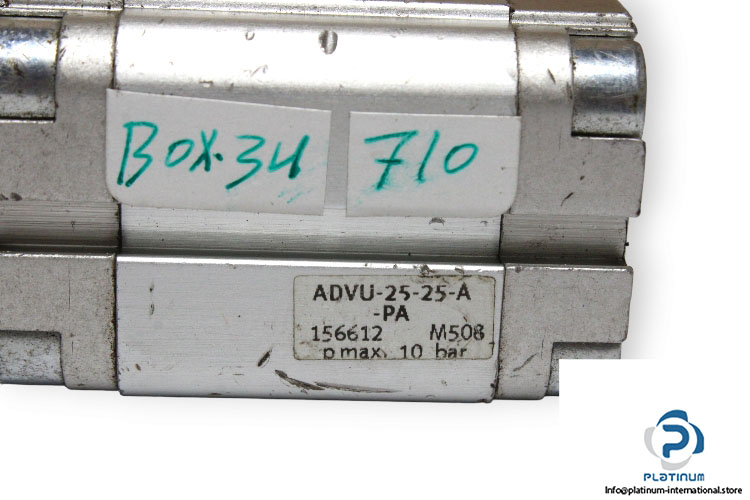

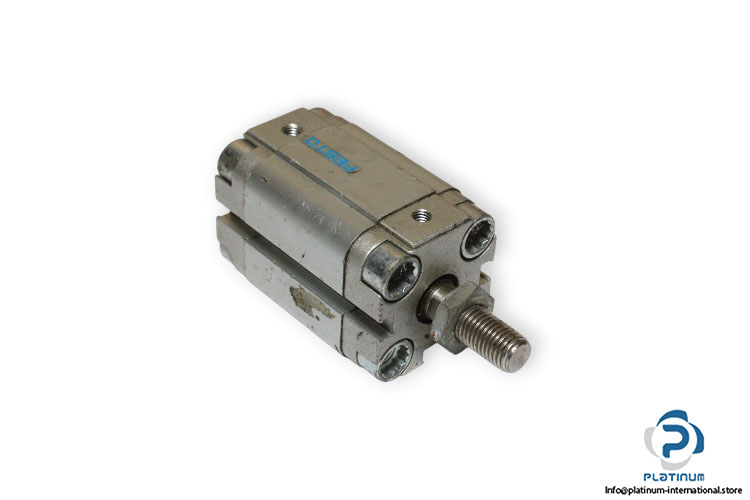

Festo ADVU-25-25-A-P-A Compact Cylinder

The Festo ADVU-25-25-A-P-A is a high-performance compact cylinder designed for efficient motion control in various industrial applications. With a 25 mm piston diameter and a 25 mm stroke length, this double-acting cylinder provides reliable performance under demanding conditions, featuring elastic cushioning rings/pads for smooth operation.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADVU-25-25-A-P-A

Part No.: 156612

Technical Data:

• Stroke Length: 25 mm
• Piston Diameter: 25 mm
• Piston Rod Thread: Male
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: 5 mm
• Temperature: -20 / 80 °C
