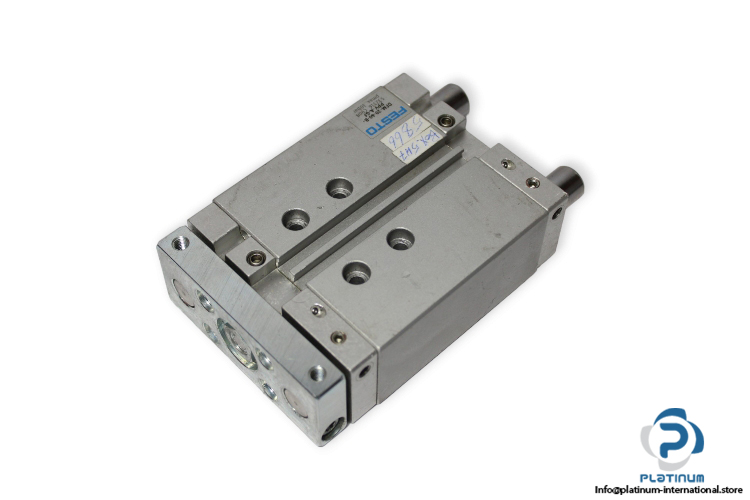

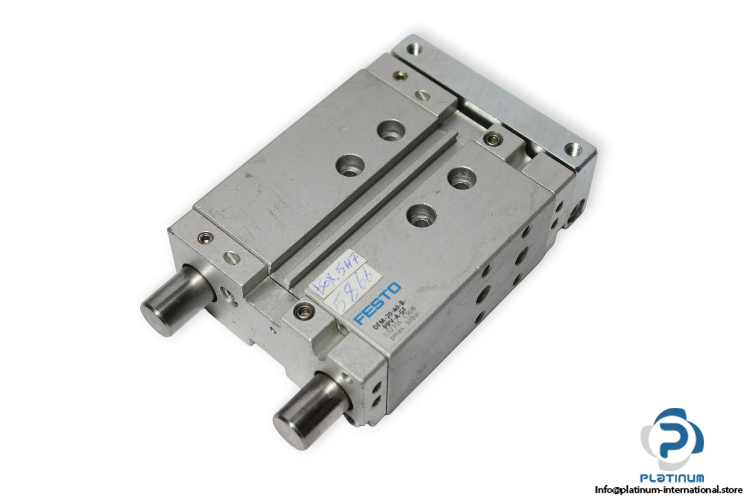

Festo 532316 Guided Actuator

Manufacturer: FESTO
Type: Guided Actuator

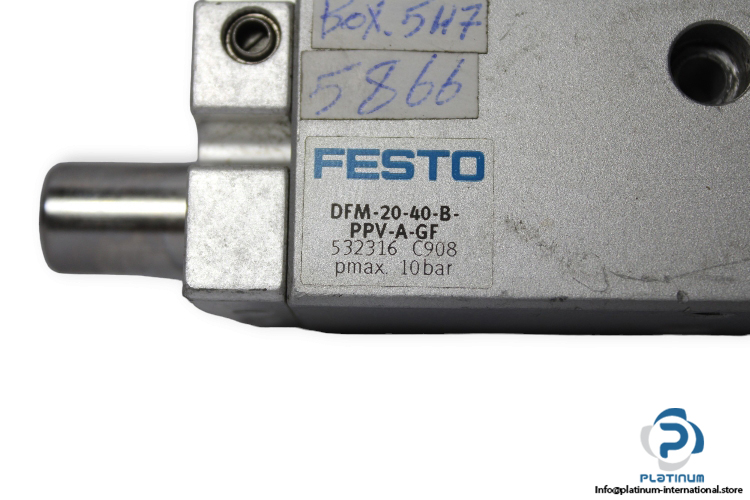

Model: DFM-20-40-B-PPV-A-GF
Part No.: 532316

Stroke Length: 40 mm
Piston Diameter: 20 mm
Structural design: Guide
Position sensing: For proximity sensor
Variants: Heat-resistant seals max. 120°C
Operating pressure: 0.2 MPa … 1 MPa
Mode of operation: Double-acting
Pneumatic connection: M5
Housing material: Wrought aluminum alloy
Theoretical force at 6 bar, retracting: 158 N
Theoretical force at 6 bar, advancing: 188 N
