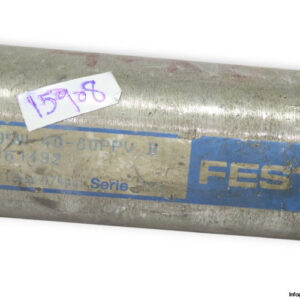

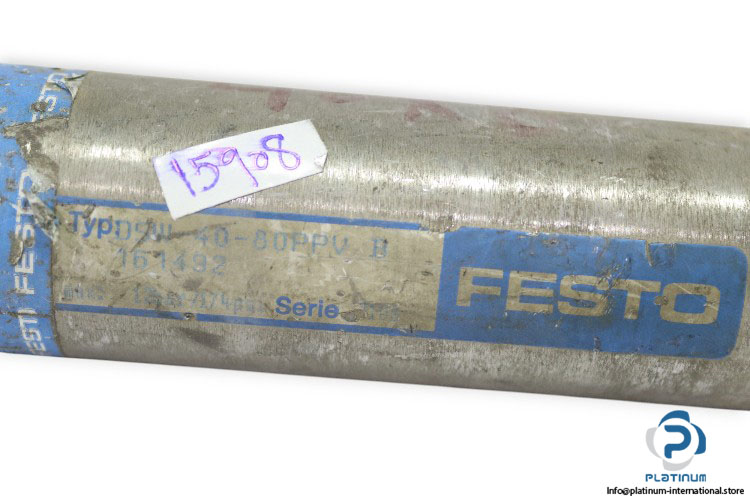

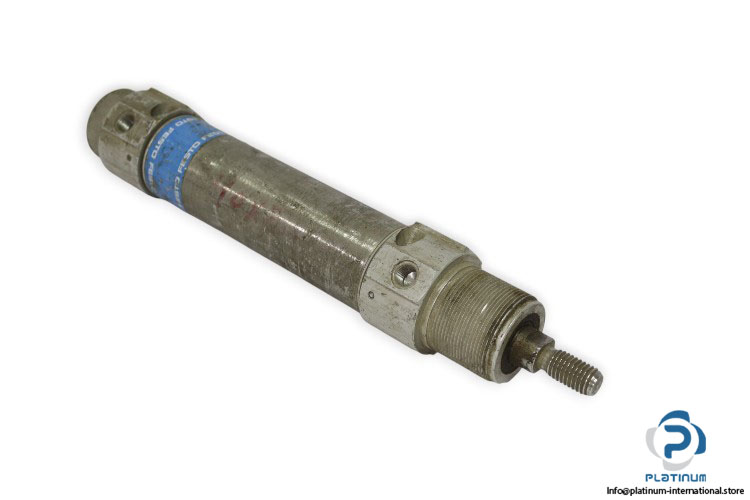

Festo DSW-40-80PPV B Round Cylinder

The Festo DSW-40-80PPV B is a durable round cylinder designed for precision pneumatic applications. With a double-acting piston, adjustable pneumatic cushioning, and robust construction materials, it ensures reliable performance in demanding industrial environments.

Manufacturer: Festo
Type: Round Cylinder
Model: DSW-40-80PPV B
Part No.: 161492
Series: DSW

Technical Information

• Stroke Length: 80 mm
• Piston Diameter: 40 mm
• Piston Rod Thread: 12 mm
• Pneumatic Connection: G1/4
• Cushioning: Pneumatic cushioning, adjustable at both ends (PPV)
• Operating Medium: Dried compressed air
• Variants: Single-ended piston rod
• Max. Operating Pressure: 10 bar
• Shape: Circular
• Piston Action: Double-acting
• Ambient Temperature: -40 to 80 °C
• Cover Material: Wrought Aluminum Alloy
• Seals Material: TPE-U(PU), NBR
• Housing Material: High alloy steel, non-corrosive
• Piston Rod Material: High alloy steel
