Manufacturer: Festo

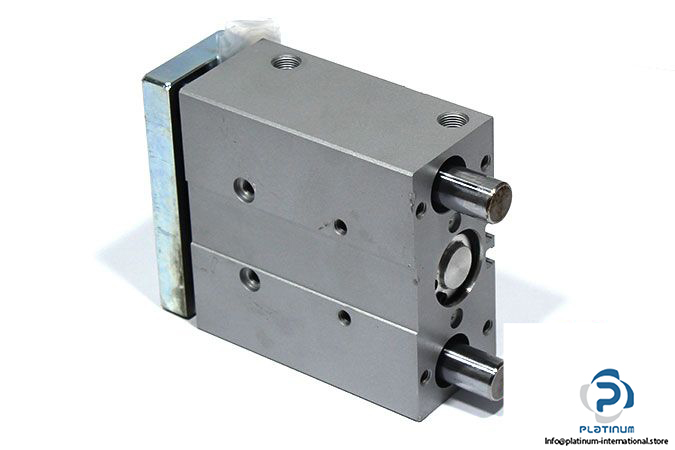

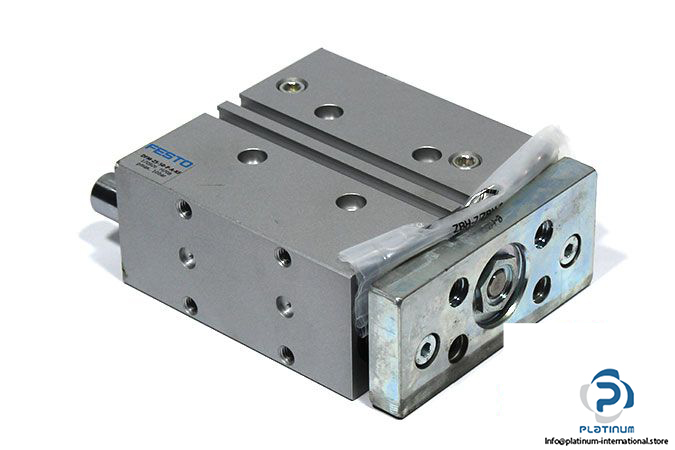

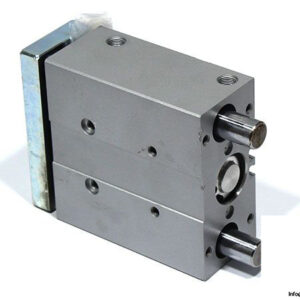

Type: Guided Actuator

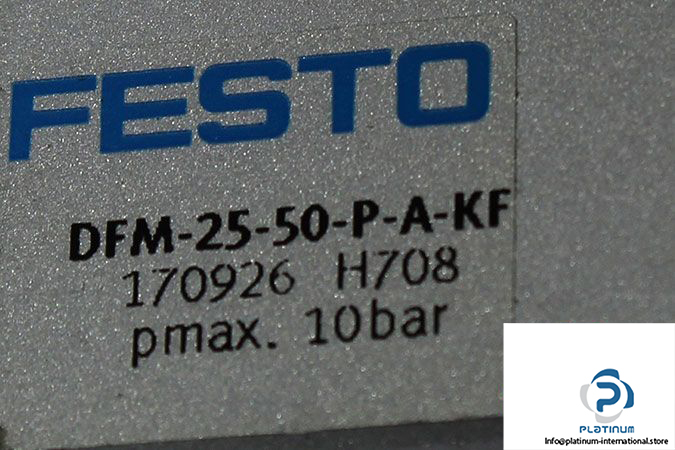

Model: DFM-25-50-P-A-KF
Part No: 170926

Operating Pressure: 1.5…10 bar
Piston Diameter: 25 mm
Stroke: 50 mm
Design: Guide
Guide: Recirculating Ball Bearing Guide
Mode of Operation: Double-Acting
Position Sensing: For Proximity Sensor
Ambient Temperature: -5…60 °C
Pneumatic Connections: G1/8”
Material: Aluminum
