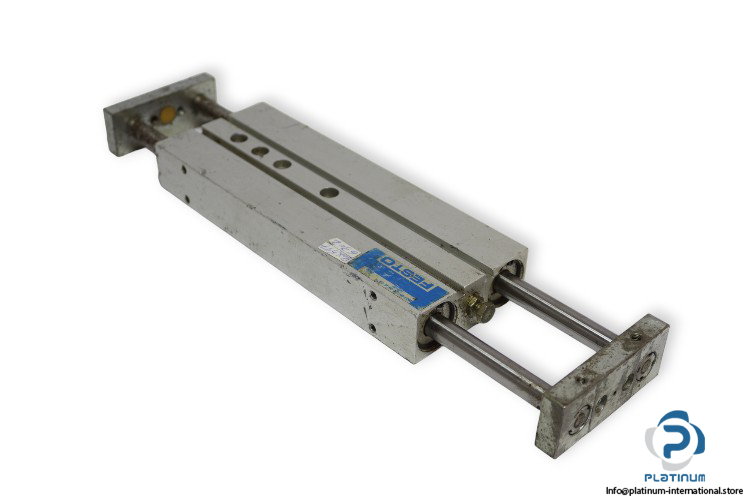

Festo 162122 Twin Cylinder

Manufacturer: FESTO
Type: Twin cylinder

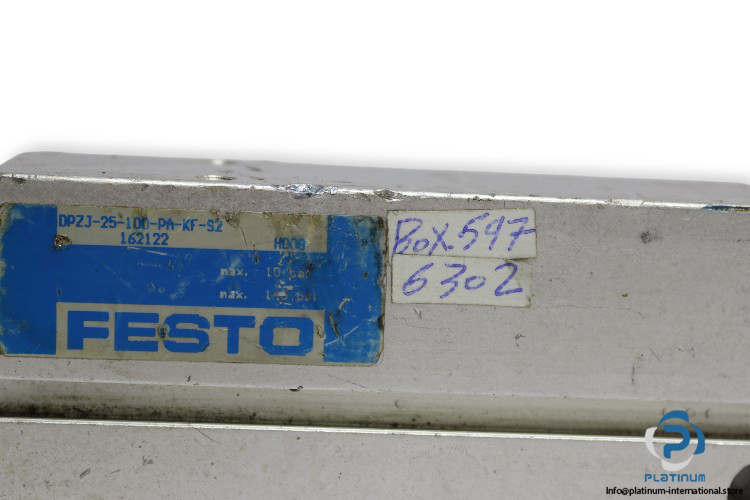

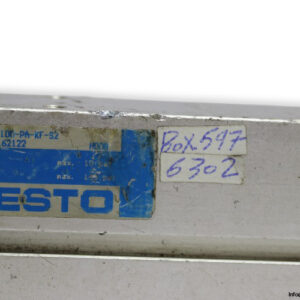

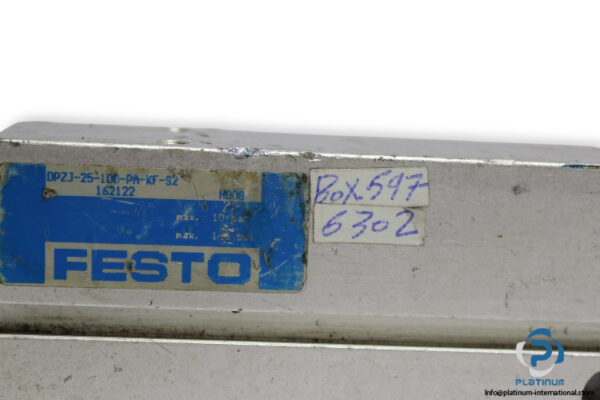

Model: DPZJ-25-100-PA-KF-S2
Part No.: 162122

Piston diameter: 25 mm
Stroke: 100 mm
Adjustable end-position range/length: 10 mm
Cushioning: Elastic cushioning rings/plates at both ends
Position detection: Via proximity switch
Ambient temperature: -20 °C … 80 °C
Operating pressure: 1 bar … 10 bar
Max. speed: 1 m/s
Mode of operation: Double-acting
Operating medium: Compressed air
Impact energy in end positions: 0.3 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 452 N
Material housing: Anodised wrought aluminium alloy
Port size: 5 mm
