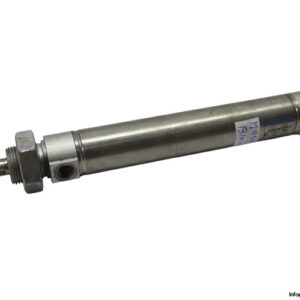

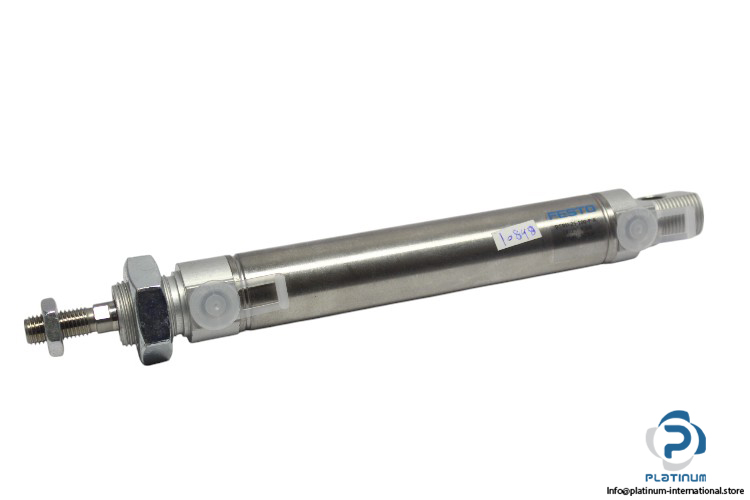

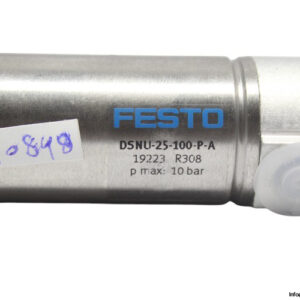

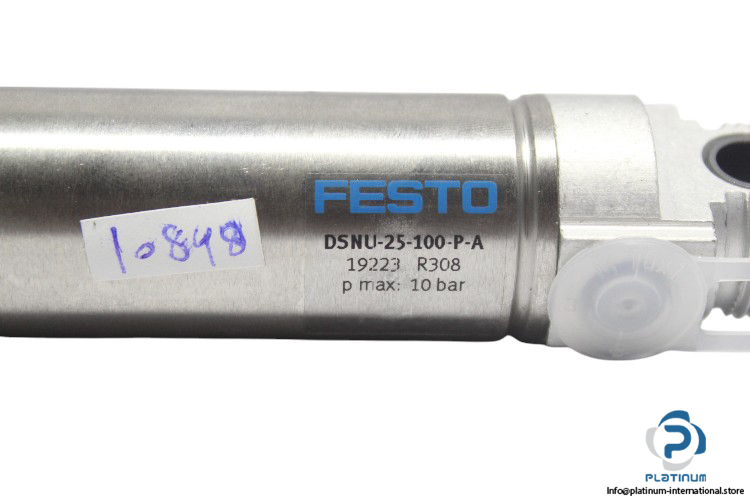

FESTO DSNU-25-100-P-A ISO Cylinder
The FESTO DSNU-25-100-P-A ISO Cylinder is a high-quality pneumatic actuator designed to deliver precise and reliable performance in a variety of industrial applications. This double-acting cylinder is engineered for efficiency, offering robust performance with minimal maintenance requirements.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-25-100-P-A
- Part No.: 19223
Technical Information
- Fluid: Compressed Air
- Piston Diameter: 25 mm
- Stroke Length: 100 mm
- Operating Pressure: 1 / 10 bar
- Piston Rod End: Male Thread
- Operation Mode: Double Acting
- Port Size: G 1/8
- Ambient Temperature: -20 / 80 °C
