Festo 19223 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DSNU-25-100-P-A is a double-acting ISO pneumatic cylinder with 25 mm bore and 100 mm stroke. Made from corrosion-resistant stainless steel, it supports compressed air applications up to 10 bar.10025ActingActuatorboreCylinderDoubleDSNU-25-100-P-AFestoIndustrialISOmmPneumaticstainlessSteelStroke
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

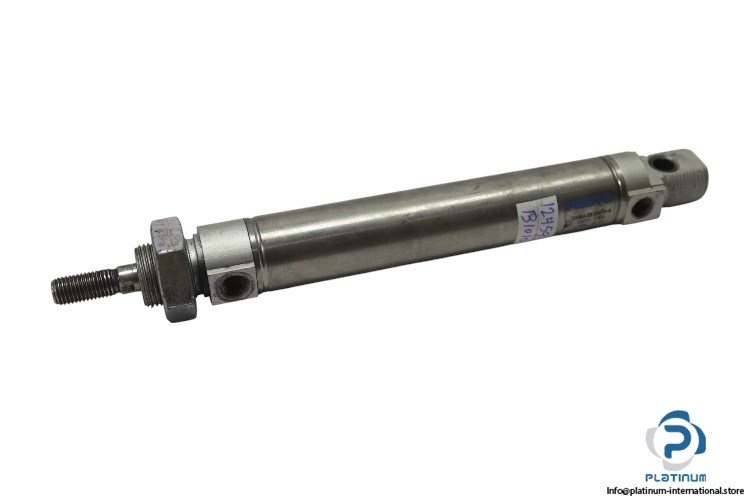

Festo DSNU-25-100-P-A “ ISO Cylinder
The Festo DSNU-25-100-P-A is a high-quality ISO-standard pneumatic cylinder designed for durability and reliable performance in industrial automation. With a 100 mm stroke and corrosion-resistant materials, this double-acting cylinder is ideal for demanding environments.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-100-P-A
Part No.: 19223
| Bore Diameter | 25 mm |
| Stroke | 100 mm |
| Variants | Single-ended piston rod |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Max. Operating Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
