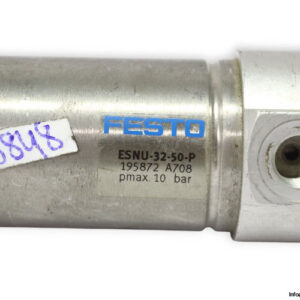

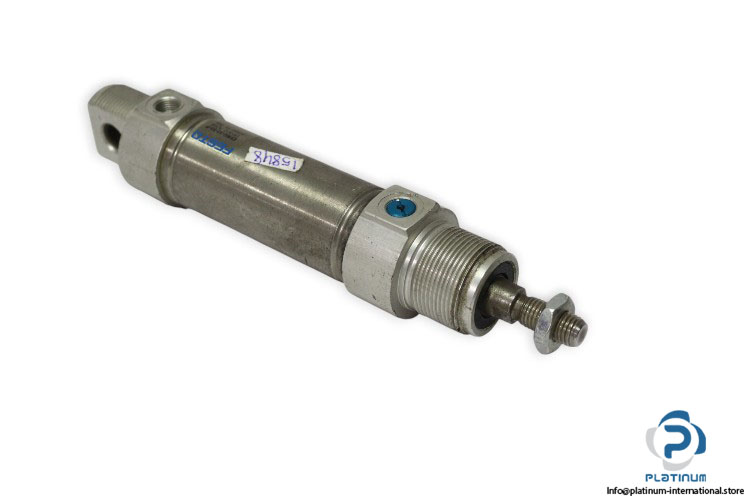

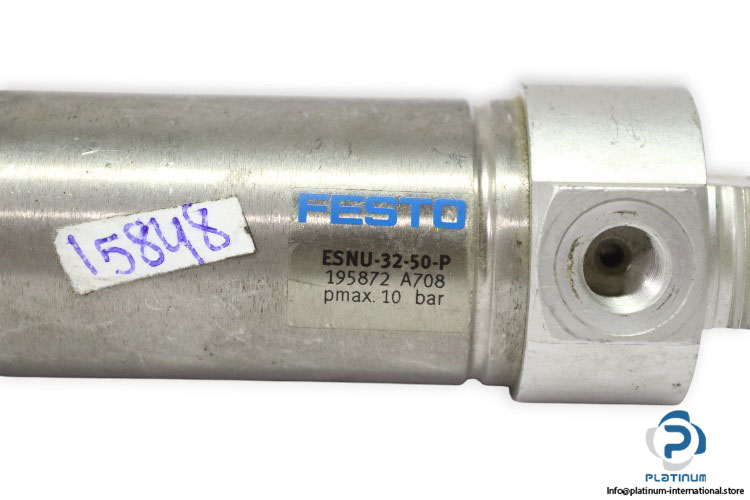

Festo ESNU-32-50-P Round Cylinder
The Festo ESNU-32-50-P is a single-acting piston rod cylinder designed for reliable pneumatic performance in industrial automation. Its robust construction, compact circular shape, and high-quality materials ensure durability under demanding operating conditions.
Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder
Model: ESNU-32-50-P
Part No.: 195872
Ref. code: A708
Series: ESNU
Technical Information
- Stroke Length: 50 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: M10x1.25
- Pneumatic Connection: G1/8
- Operating Medium: Compressed Air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Single-acting
- Material Cover: Wrought Aluminum Alloy
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy Steel
- Ambient Temperature: -20 to 80 °C
