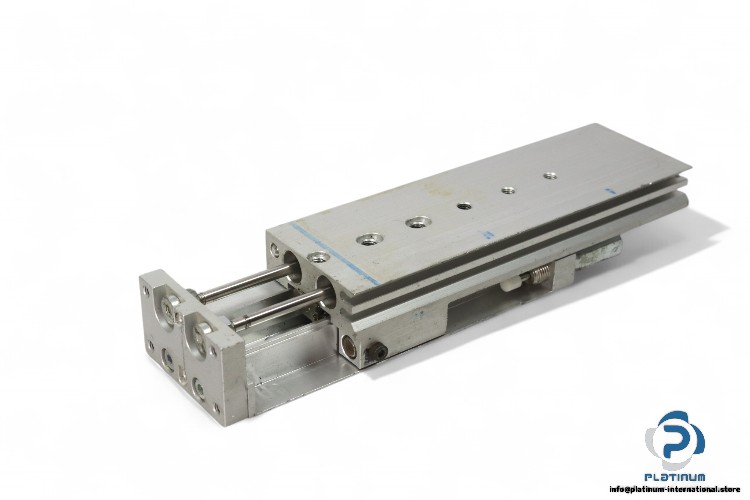

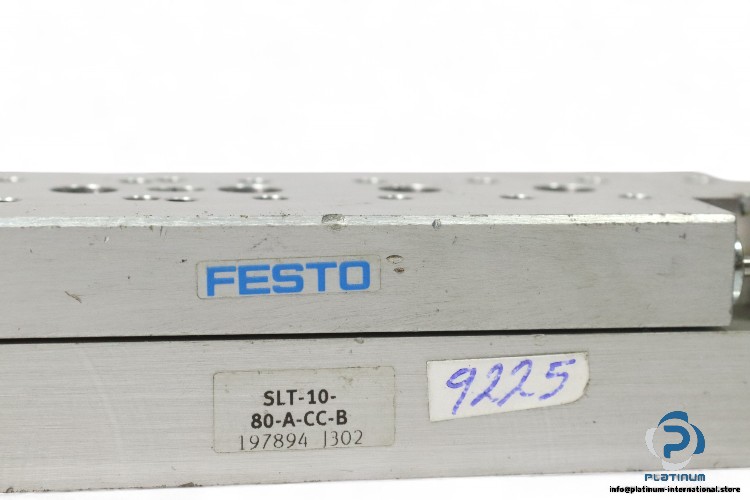

FESTO MINI SLIDE – Model SLT-10-80-A-CC-B (Part no. 197894)

The FESTO SLT-10-80-A-CC-B Mini Slide is a high-performance, compact pneumatic actuator designed for precise, reliable motion control in tight spaces. With a 10 mm piston diameter and an 80 mm stroke, this double-acting actuator is perfect for applications that require smooth and controlled linear movement. Featuring a shock absorber at both ends (CC cushioning), it ensures reduced impact energy (1 Nm) and minimizes wear in the system.

The Mini Slide operates efficiently with an operating pressure range of 1 to 10 bar and a repetition accuracy of 0.02 mm, providing high precision in your automation systems. It is equipped with a ball bearing cage guide for smooth and low-friction operation, enhancing durability and performance even in demanding environments.

The SLT-10-80-A-CC-B offers flexibility with its adjustable end-position range (4 mm) and can be mounted in any assembly position. Position detection is possible using a proximity sensor, making it easy to integrate with existing control systems. The actuator is also designed to operate with lubricated or non-lubricated compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring compatibility with a wide range of applications.

Constructed with a corrosion-resistant housing and high alloy steel piston rod, this Mini Slide is suitable for environments with no corrosion stress (CRC 0) and can withstand ambient temperatures between -20 °C and +60 °C. It is free of copper and PTFE, meeting stringent material standards.
