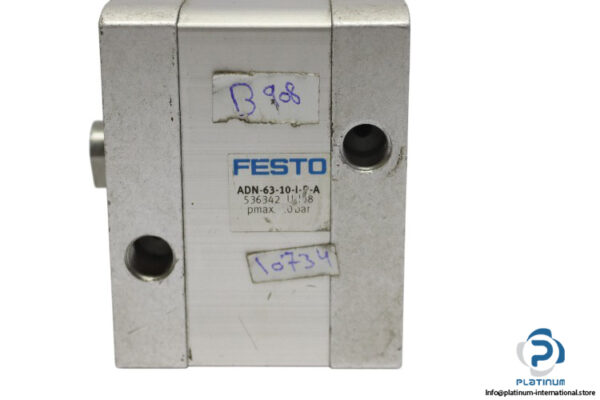

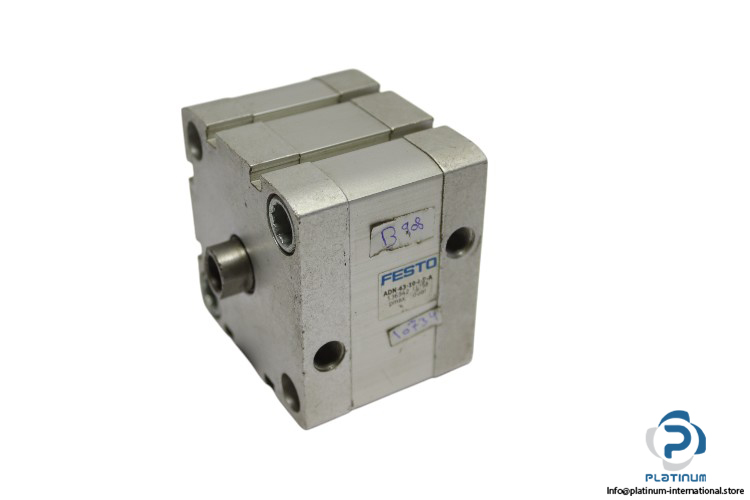

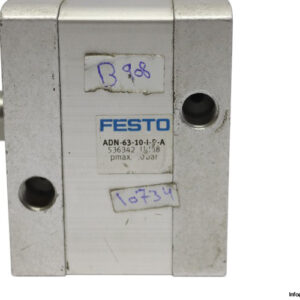

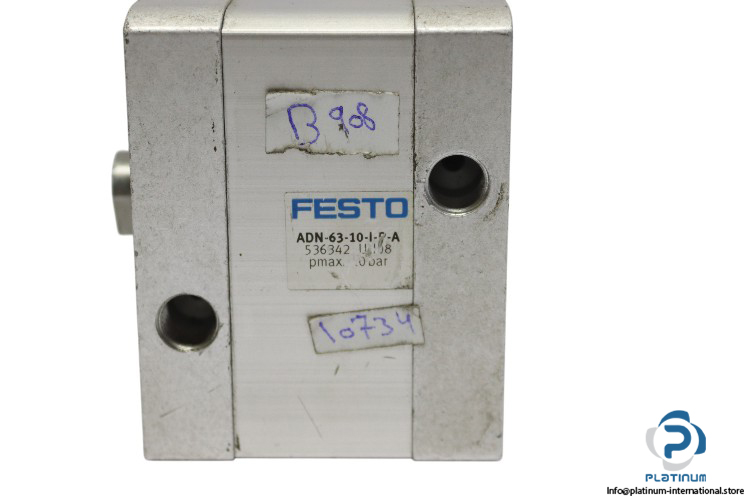

FESTO COMPACT CYLINDER

The Festo Compact Cylinder (Model: ADN-63-10-I-P-A, Part No. 536342) offers reliable performance in pneumatic systems. With a piston diameter of 63 mm and a stroke length of 10 mm, it is designed for use in compact spaces while providing high efficiency and durability. Featuring double-acting operation, elastic cushioning, and position sensing, it is ideal for a wide range of industrial applications.

Manufacturer: FESTO

Type: Compact Cylinder

Model: ADN-63-10-I-P-A

Part No.: 536342

Technical Specifications

• Stroke Length: 10 mm
• Piston Diameter: 63 mm
• Piston Rod Thread: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: G1/8
• Temperature Range: -20 to 80 °C
