Festo 536342 Compact Cylinder
New
In stock3 unitsReady to ship
compact cylinder
The Festo Compact Cylinder ADN-63-10-I-P-A (Part No. 536342) provides double-acting operation, elastic cushioning, and efficient performance with a 63 mm piston diameter and 10 mm stroke length.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FESTO COMPACT CYLINDER

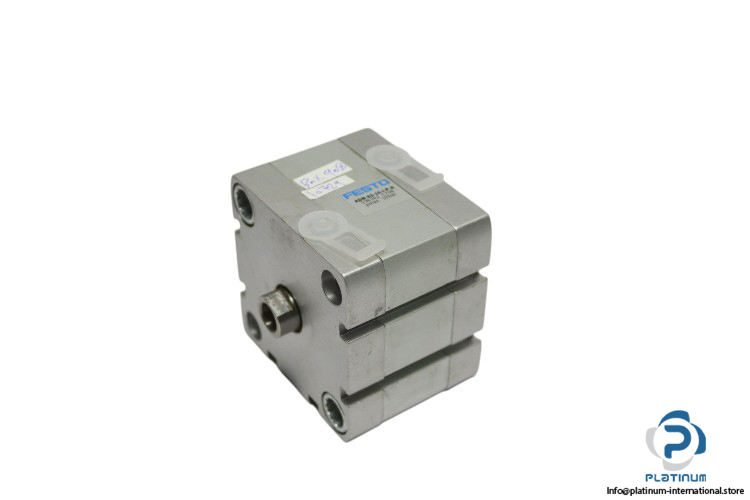

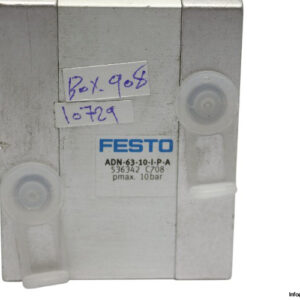

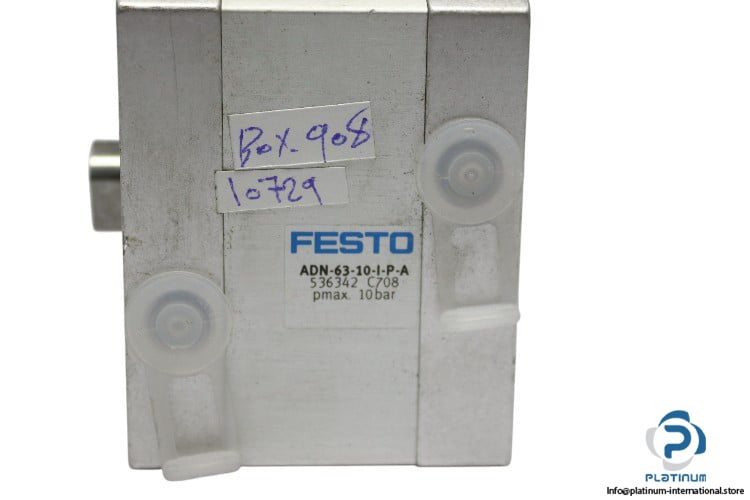

The Festo Compact Cylinder (Model: ADN-63-10-I-P-A, Part No. 536342) offers reliable performance in pneumatic systems. With a piston diameter of 63 mm and a stroke length of 10 mm, it is designed for use in compact spaces while providing high efficiency and durability. Featuring double-acting operation, elastic cushioning, and position sensing, it is ideal for a wide range of industrial applications.
Manufacturer: FESTO
Type: Compact Cylinder
Model: ADN-63-10-I-P-A
Part No.: 536342
Technical Specifications
- Stroke Length: 10 mm
- Piston Diameter: 63 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Variant: Piston rod at one end
- Pneumatic Connection: G1/8
- Temperature Range: -20 to 80 °C
