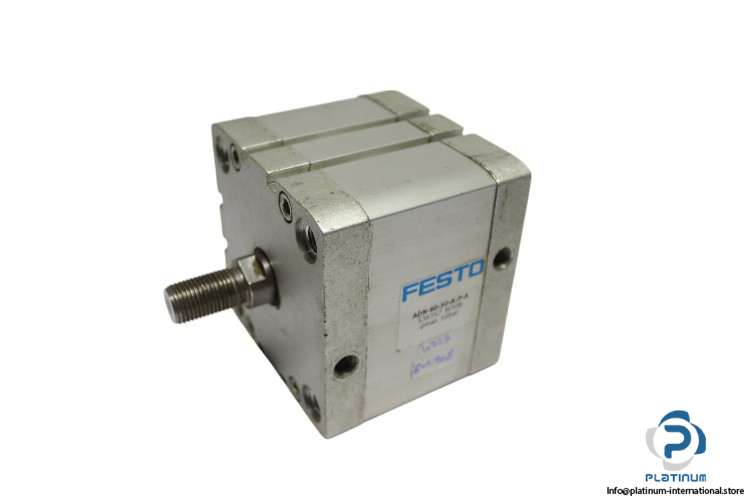

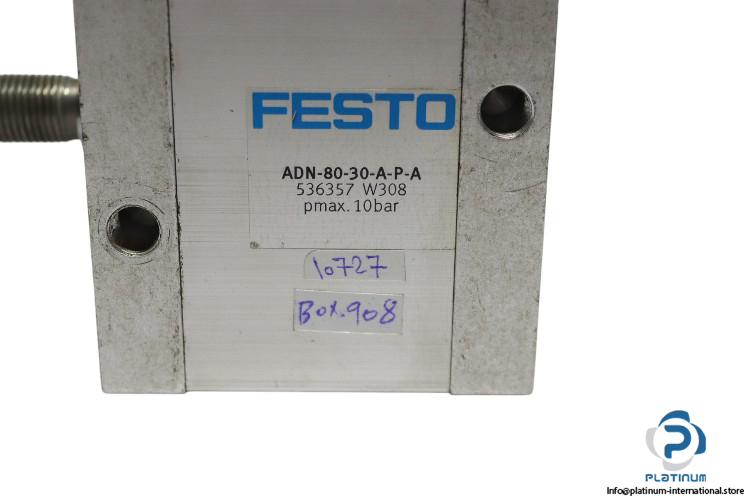

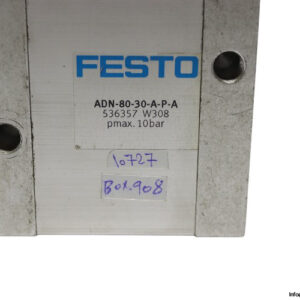

FESTO COMPACT CYLINDER

The Festo Compact Cylinder (Model: ADN-80-30-A-P-A, Part No. 536357) is a high-performance pneumatic cylinder designed for efficient operation in industrial automation applications. With a piston diameter of 80 mm and a stroke length of 30 mm, this double-acting cylinder offers reliable performance with elastic cushioning and proximity sensing for accurate position control.

Manufacturer: Festo

Type: Compact Cylinder

Model: ADN-80-30-A-P-A

Part No.: 536357

Technical Specifications

• Stroke Length: 30 mm
• Piston Diameter: 80 mm
• Piston Rod Thread: Male
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double acting
• Cushioning: Elastic cushioning rings/pads at both ends
• Position Sensing: For proximity sensing
• Variant: Piston rod at one end
• Pneumatic Connection: G1/8
• Temperature: -20 to 80 °C
