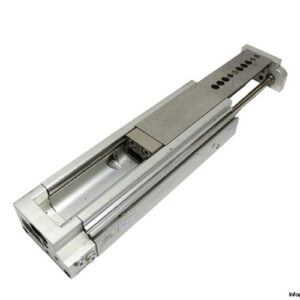

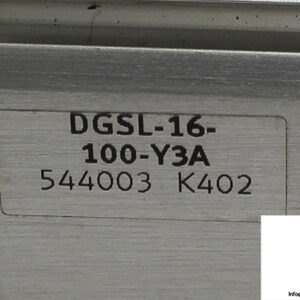

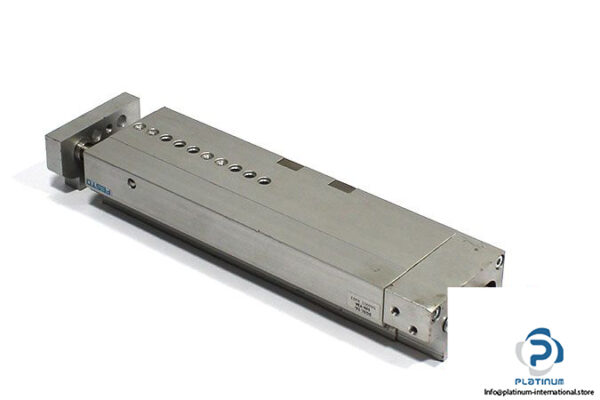

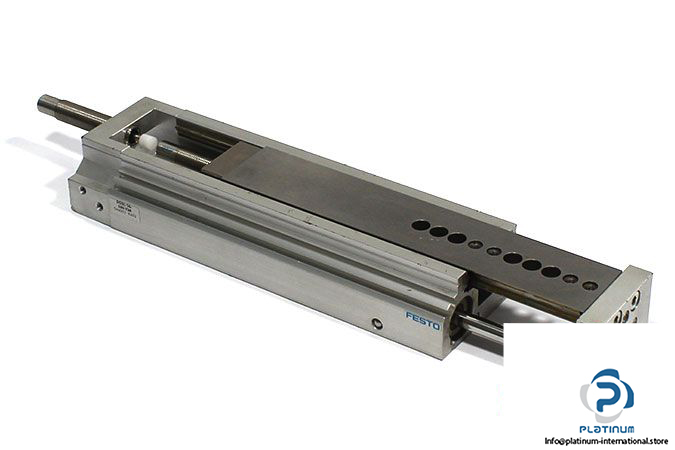

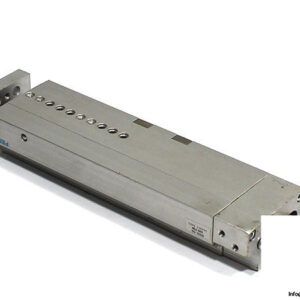

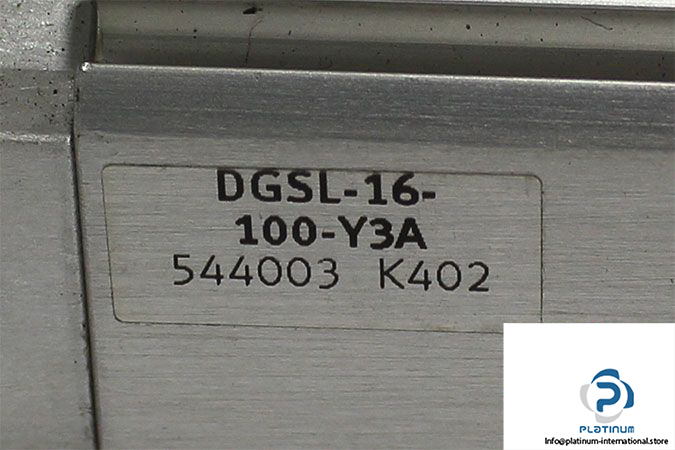

Manufacturer: Festo

Type: Mini Slide

Model: DGSL-16-100-Y3A

Part No: 544003

Operating Pressure: 1…8 bar

Size: 16 mm

Piston Diameter: 20 mm

Stroke: 100 mm

Fluid: Air

Guide: Ball Bearing Cage Guide

Design: Yoke, Piston, Piston Rod, Slide

Position Sensing: For Proximity Sensor

Mode of Operation: Double Acting

Ambient Temperature: 0…60 °C

Pneumatic Connections: M5

Material: Aluminum

Weight: 1.74 kg

Attachment: FESTO 548073 PNEUMATIC SHOCK ABSORBER

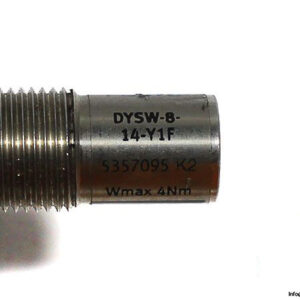

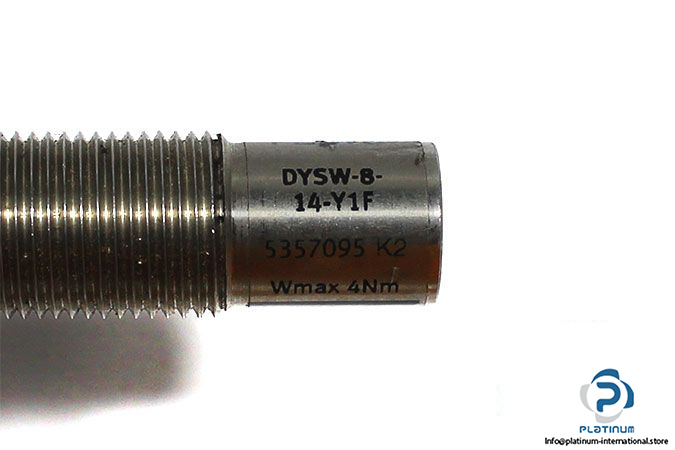

Manufacturer: Festo

Type: Pneumatic Shock Absorber

Model: DYSW-8-14-Y1F

Part No.: 548073 / 5357095

Size: 8

Stroke: 14 mm

Cushioning: Self-Adjusting, Soft Characteristic Curve

Max. Impact Velocity: 3 m/s

Mode of Operation: Single-Acting / Pushing

Torque: 3 Nm

Cushioning Length: 14 mm

Ambient Temperature: -10…80 °C

Housing Material: High-Alloy Steel
