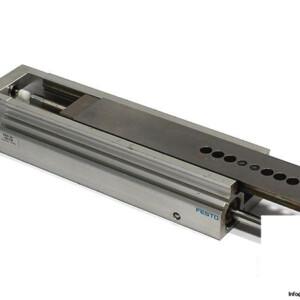

Festo 544003 Mini Slide
Used
In stock1 unitReady to ship
Mini Slide
The Festo DGSL-16-100-Y3A Mini Slide features 16 mm size, 100 mm stroke, double acting operation, and is ideal for compact automation and linear motion applications.16ActingAirAutomationBallbearingCageCompressedDGSL-16-100-Y3ADoubleFestoGuideLinearMinimmMotionpartsPneumaticSizeSlide
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

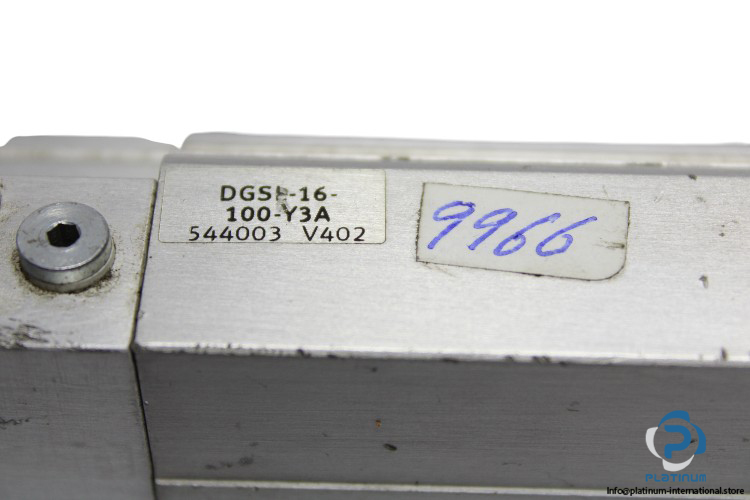

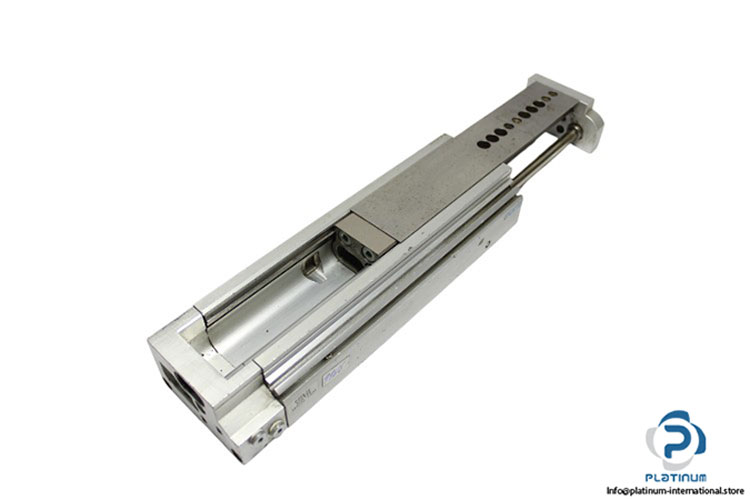

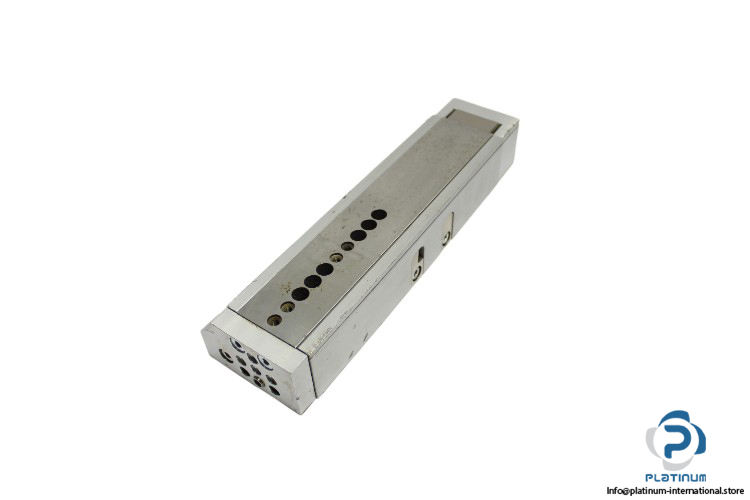

Festo DGSL-16-100-Y3A Mini Slide
The Festo DGSL-16-100-Y3A Mini Slide is designed for high-performance, compact linear motion applications. With precise piston movement and a ball bearing cage guide, this mini slide ensures reliable operation in both industrial and automation environments.
Manufacturer: Festo
Type: MINI SLIDE
Model: DGSL-16-100-Y3A
Part No.: 544003
This mini slide is engineered for precision and high efficiency, making it ideal for automation tasks requiring compact and reliable motion control.
| Operating Pressure | 1 to 8 bar |
| Size | 16 mm |
| Piston Diameter | 20 mm |
| Stroke | 100 mm |
| Fluid | Compressed air |
| Guide | Ball Bearing Cage Guide |
| Design | Yoke, Piston, Piston Rod, Slide |
| Position Sensing | Via proximity switch |
| Mode of Operation | Double Acting |
| Ambient Temperature | 0 to 60 °C |
| Pneumatic Connections | M5 |
| Cover Material | Wrought aluminum alloy |
