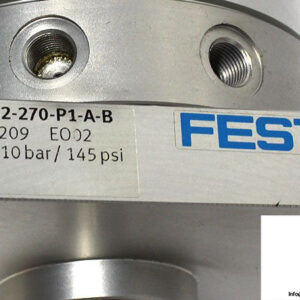

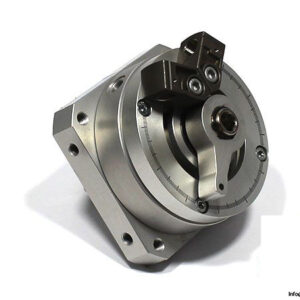

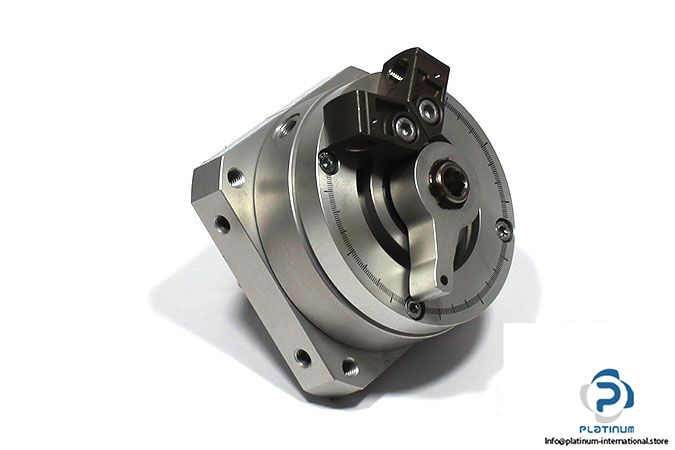

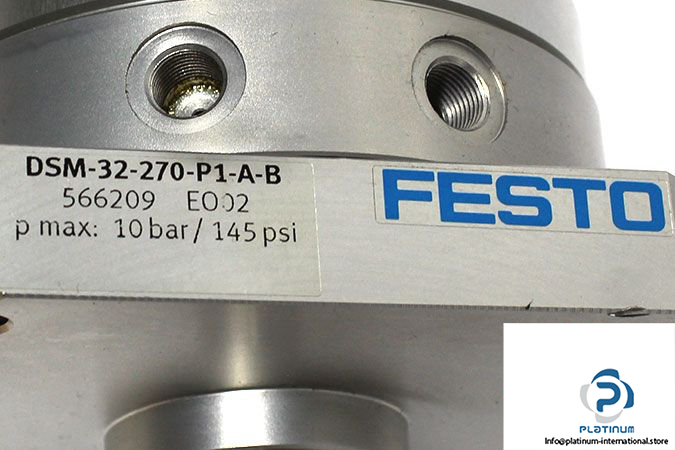

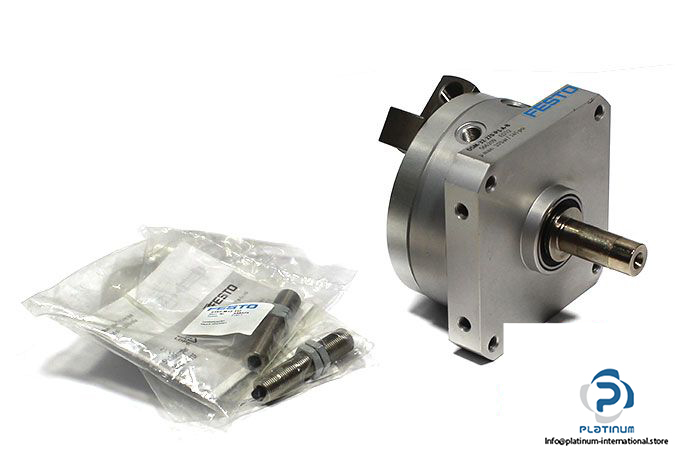

Manufacturer: Festo

Type: Rotary Actuator

Model: DSM-32-270-P1-A-B

Part No.: 566209

Size: 32

Cushioning Angle: 6.5 deg

Range of Swivel Angle: 0…246 deg

Swivel Angle: 0…246 deg

Operating Pressure: 1.5…10 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 24.1 Nm

Pneumatic Connection: G1/8”

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Aluminum

Weight: 1.59 kg

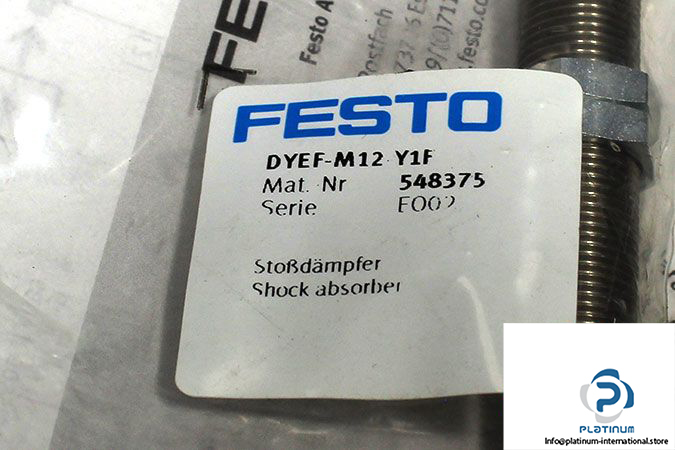

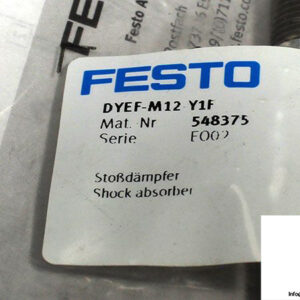

Attachment: FESTO 548375 PNEUMATIC SHOCK ABSORBER

Manufacturer: Festo

Type: Pneumatic Shock Absorber

Model: DYEF-M12-Y1F

Part No.: 548375

Size: M12

Stroke: 4.2 mm

Max. Impact Velocity: 0.8 m/s

Position Sensing: None

Cushioning Length: 4.2 mm

Max. Energy Absorption Per Stroke: 0.12 J

Type of Mounting: With Lock Nut

Ambient Temperature: 0…60 °C

Housing Material: High-Alloy Steel
