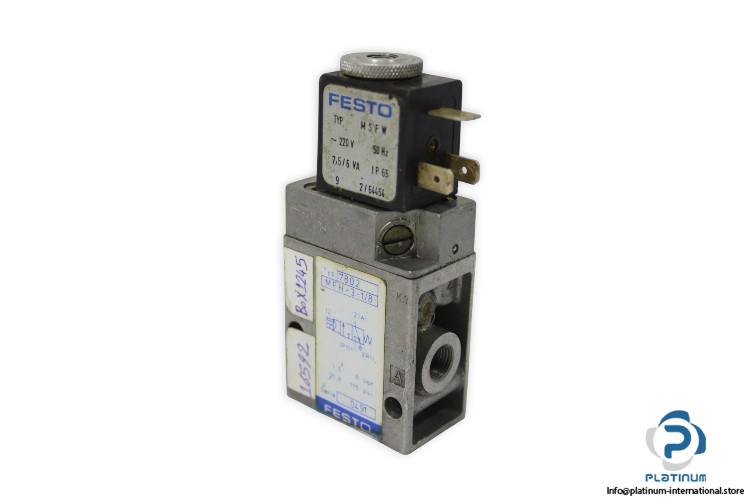

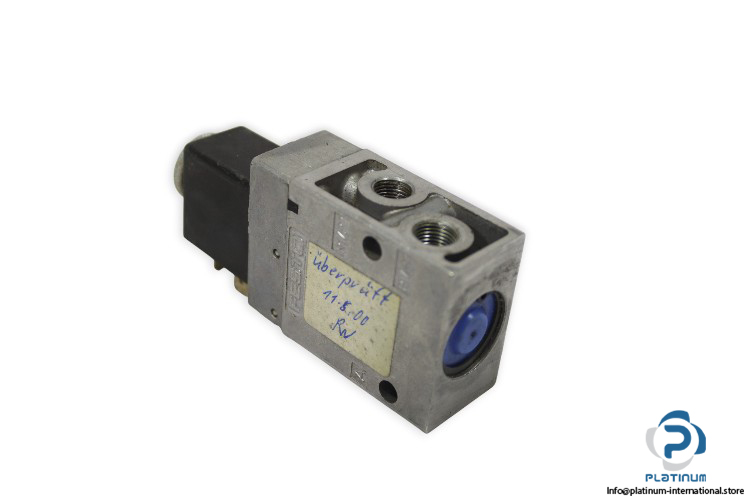

FESTO MFH-3-1/8 Single Solenoid Valve with MSFW Coil

The FESTO MFH-3-1/8 Single Solenoid Valve is a compact and efficient pneumatic valve designed for reliable air control in automation systems. Featuring a poppet seat design and closed monostable function, it provides dependable performance and fast response. Supplied with a FESTO MSFW solenoid coil for precise electrical actuation.

Manufacturer: FESTO
Type: Single Solenoid Valve

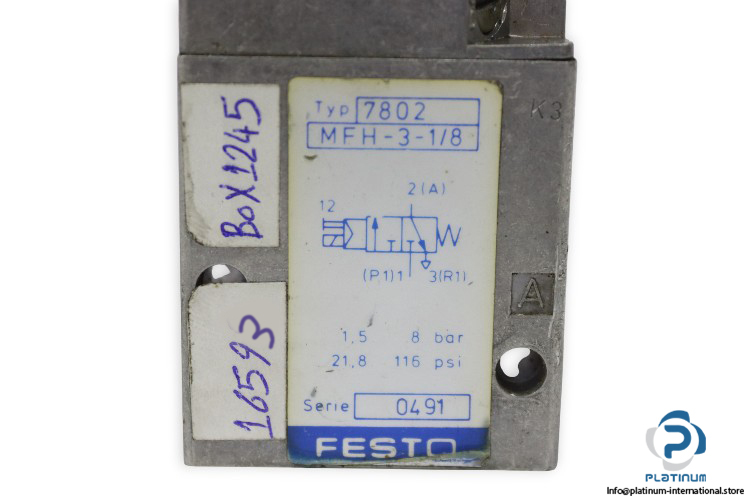

Model: MFH-3-1/8
Part No.: 7802

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 3 by 2 way, closed, monostable
• Type of Actuation: Electrically
• Operating Pressure: 1.5 to 8 bar
• Nominal Flow Rate: 500 liters per minute
• Pneumatic Connection: G1 by 8
• Material: Die cast aluminum
• Ambient Temperature: minus 5 to 40 degree Celsius
• Solenoid Coil Attachment: FESTO MSFW

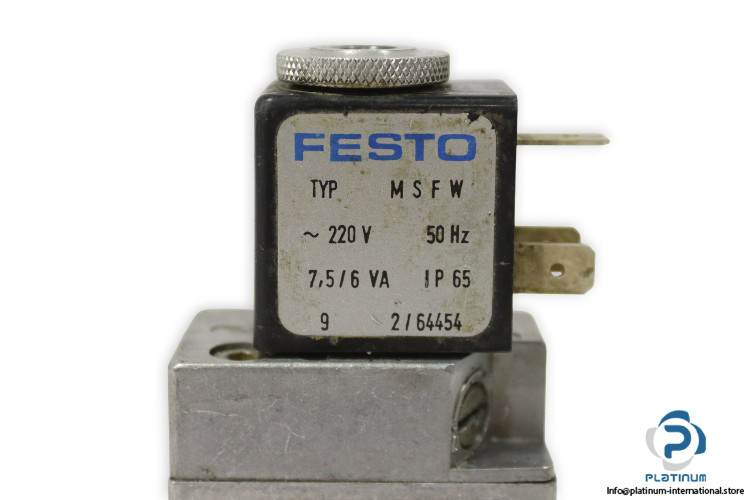

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFW
Code: 2 by 64454

• Supply Voltage: 220 V AC
• Frequency: 50 Hz
• Power Consumption: 7.5 or 6 VA
• Protection Class: IP65
