Festo 7802 Single Solenoid Valve 24/42 V
Used
Available on request
SINGLE SOLENOID VALVE
FESTO MFH-3-1/8 single solenoid valve with 3/2-way monostable control, 500 l/min flow, and die-cast aluminium body. Includes MSFG-24/42-50/60-OD IP65 coil.3/27802AluminiumcoilControldie-castFestoIndustrialIP65MFH-3-1/8MonostableMsfgPneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

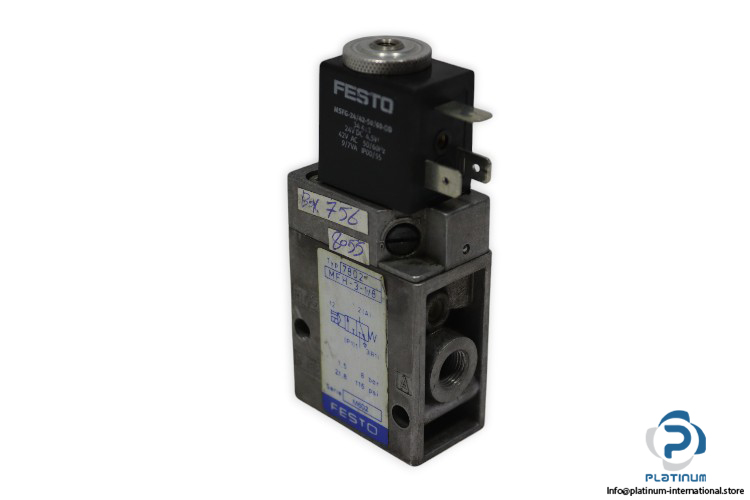

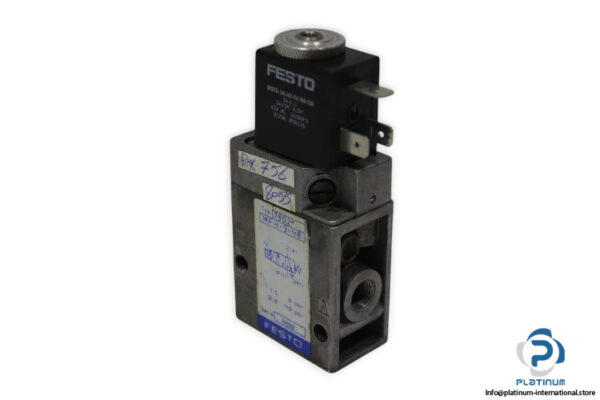

FESTO MFH-3-1/8 SINGLE SOLENOID VALVE WITH MSFG-24/42-50/60-OD COIL
The FESTO MFH-3-1/8 is a compact, high-performance single solenoid valve designed for precise pneumatic control. Featuring a 3/2-way, closed, monostable function and poppet seat design, it operates reliably under a wide range of industrial conditions. Paired with the FESTO MSFG-24/42-50/60-OD solenoid coil, this valve ensures energy-efficient and protected actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve

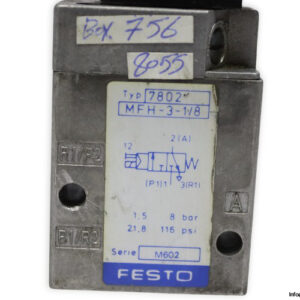

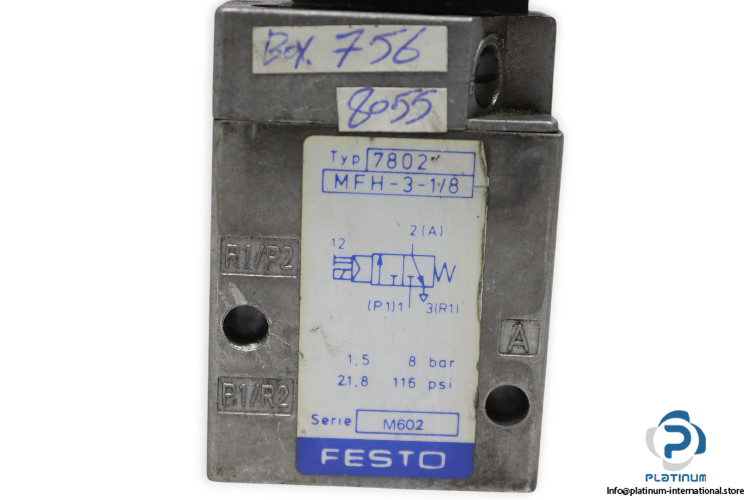

Model: MFH-3-1/8
Part No.: 7802
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 1.5 to 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 40 °C |

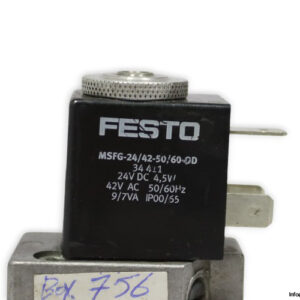

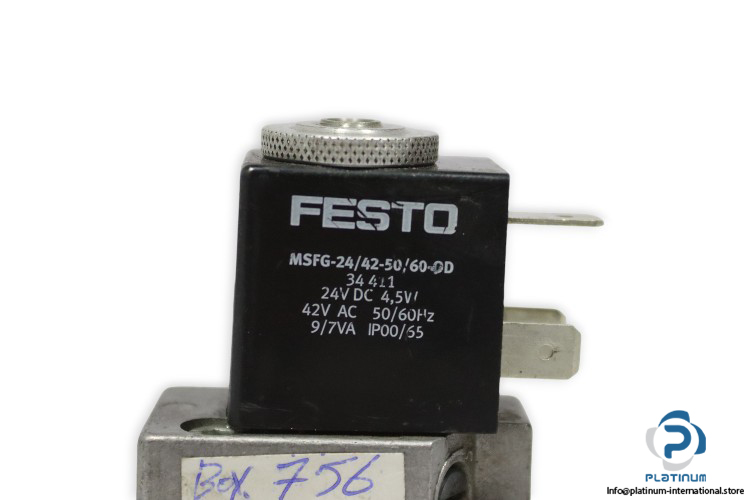

| Solenoid Coil Attachment | FESTO 34 411 |
| Part No. | 34411 |
| Supply Voltage | 24 V DC / 42 V AC |
| Frequency | 50 to 60 Hz |
| Power Consumption | 4.5 W / 9/7 VA |
| Protection Class | IP65 |
