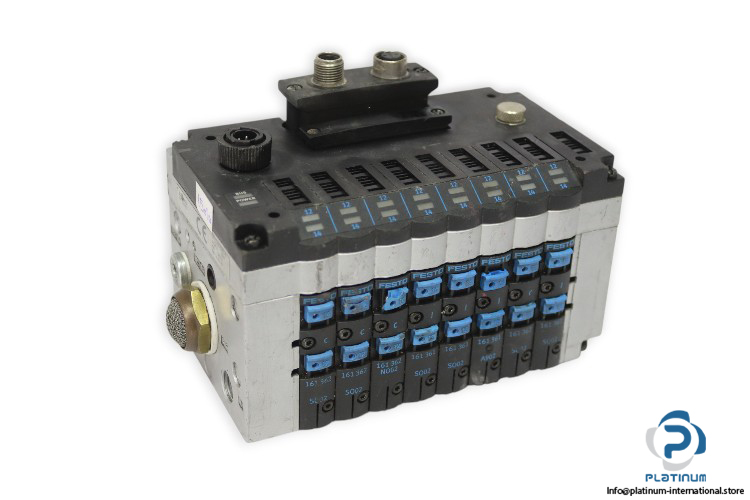

FESTO CPV14-GE-DI01-8 ELECTRICAL INTERFACE

Designed for high-efficiency control in pneumatic automation systems, the FESTO CPV14-GE-DI01-8 Electrical Interface combines compact design with robust communication and valve expansion capabilities. Its modular system is compatible with multiple valve types, ideal for demanding industrial applications.

Manufacturer: Festo
Type: Electrical Interface
Model: CPV14-GE-DI01-8
Part No.: 165811

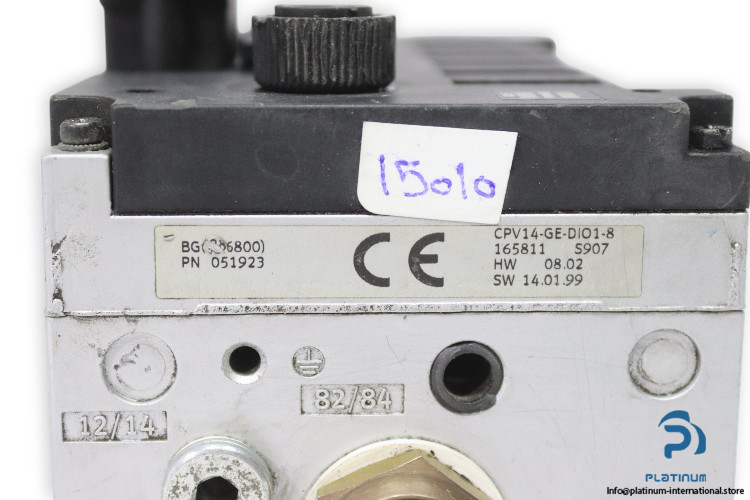

Code: 051923, 82/84, 12/14, BG 386800, S907
HW Version: 08.02
SW Version: 14.01.99

Technical Information

• Connection: 1/8 & ¼ inch
• Fluid: Air
• Material: Aluminum
• Port Size: Sub based
• CP String Expansion: 16 inputs / 8 outputs (or 16 valves)
• Field Bus Interface: M12x1, 5-pin, B-coded Sub-D, 9-pin socket
• Communication: Cyclic communication
• Max. Valve Coils with Expansion: 32
• Max. Valve Coils: 16
• Operational Voltage Range: 20.4 V to 26.4 V
• Ambient Temperature: -5 °C to 50 °C
• Degree of Protection: IP65
• LED Display: 12/14, switching status of valves, POWER, electronics/load supply
• Housing Material: Die-cast aluminium

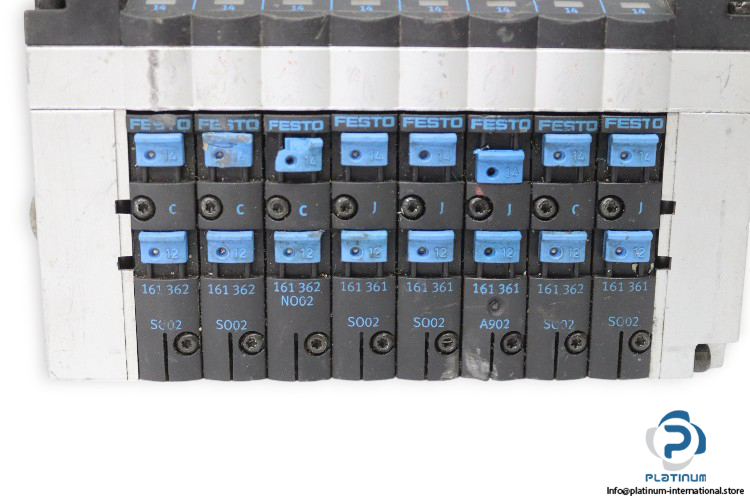

Attachment 1: Festo 161362 Solenoid Valve

• Model: CPV14-M1H-2X3-GLS-1/8
• Valve Function: 2 x 3/2-way, monostable, closed
• Actuation Type: Electric
• Valve Size: 14 mm
• Flow Rate: 800 l/min
• Pneumatic Port: G1/8
• Operating Voltage: 24 V DC
• Pressure Range: -0.09 MPa to 1 MPa
• Reset Type: Pneumatic spring
• Protection: IP65
• Nominal Size: 6 mm
• Ambient Temperature: -5 °C to 50 °C
• Material: POM/PPS/Steel
• Quantity: 4

Attachment 2: Festo 161361 Solenoid Valve

• Model: CPV14-M1H-5JS-1/8
• Valve Function: 5/2 bistable
• Actuation Type: Electric
• Valve Size: 14 mm
• Flow Rate: 800 l/min
• Pneumatic Port: G1/8
• Operating Voltage: 24 V DC
• Pressure Range: -0.9 bar to 10 bar
• Protection: IP65
• Nominal Size: 6 mm
• Ambient Temperature: -5 °C to 50 °C
• Material: POM/PPS/Steel
• Quantity: 4
