Festo 195710 3-WAY Valve Terminal

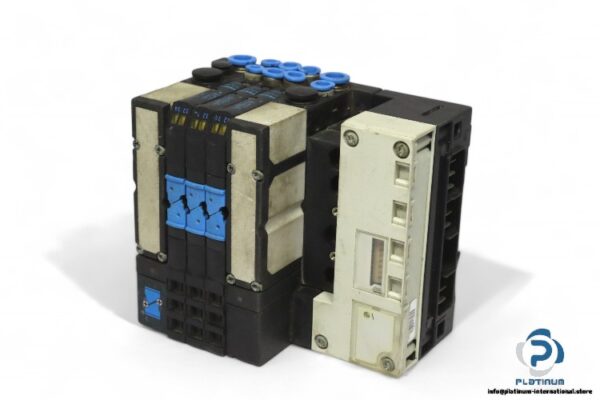

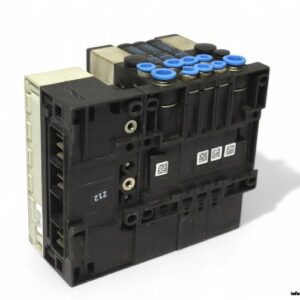

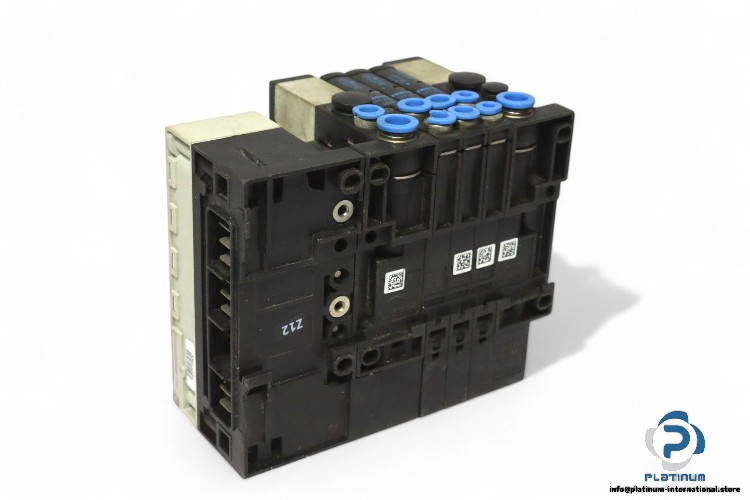

FESTO 3 Way Valve Terminal CPX-GP-CPA-10

The FESTO 3 Way Valve Terminal CPX-GP-CPA-10 is designed for efficient control of pneumatic systems. This valve terminal works seamlessly with FESTO double and single solenoid valves, providing reliable operation for various industrial applications.

Manufacturer: FESTO

Type: 3 Way Valve Terminal

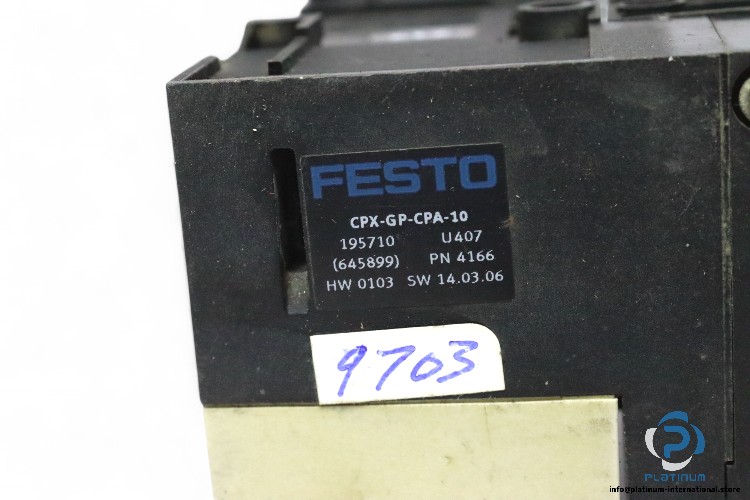

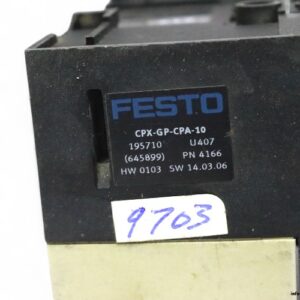

Model: CPX-GP-CPA-10

Part No.: 195710

Technical Specifications

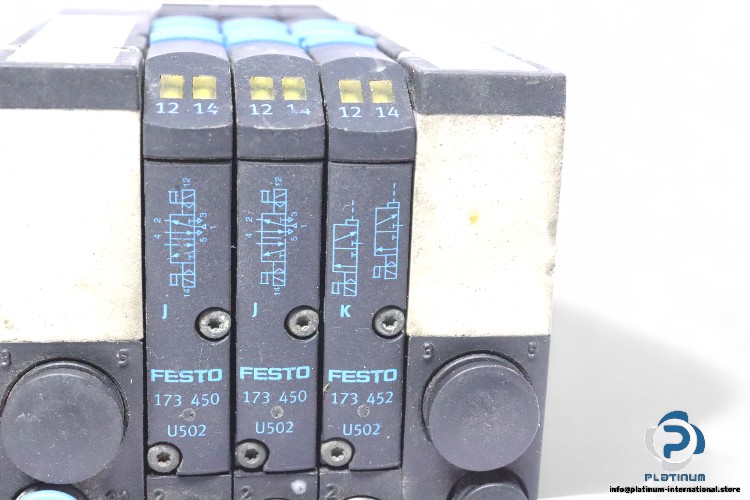

• Attachment 1: FESTO 173 450 Double Solenoid Valve
• Fluid: Air
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar / -0.09 … 1 MPa
• Voltage: 21 V DC
• Protection Class: IP65
• Temperature: -5 / 50 °C
• Pneumatic Connection: Sub-Base
• Width: 10 mm

• Attachment 2: FESTO 173 452 Single Solenoid Valve
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Flow Rate: 220 l/m
• Voltage: 21 V DC
• Protection Class: IP65
• Temperature: -5 / 50 °C
• Pneumatic Connection: Sub-Base
• Width: 10 mm
