Festo 195710 3-WAY Valve Terminal
Utilisé
En stock1 unitéPrêt à être expédié
3 Way Valve Terminal
FESTO 3 Way Valve Terminal CPX-GP-CPA-10 designed for industrial applications, with attachments including the FESTO 173 450 Double Solenoid Valve and FESTO 173 452 Single Solenoid Valve. Features electrically actuated valves, IP65 protection, and wide operating pressure ranges.3ActuatedClassconnectionControlCPX-GP-CPA-10DoubleElectricallyFestoIndustrialIP65PneumaticProtectionSinglesolenoidSub-BaseterminalValveWay
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

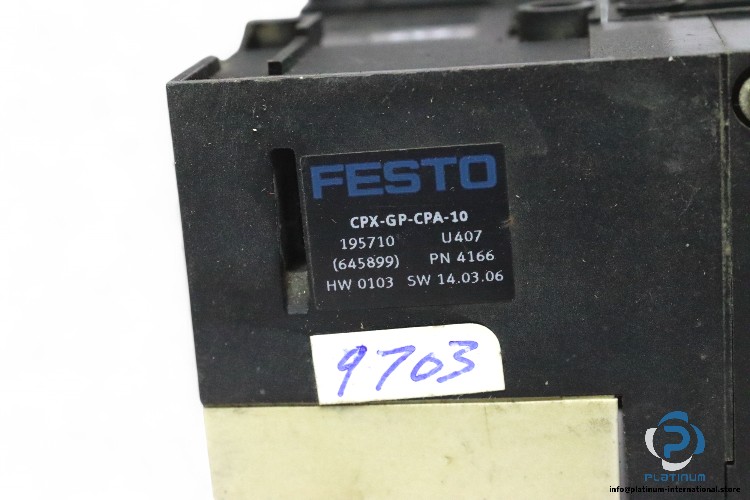

FESTO 3 Way Valve Terminal CPX-GP-CPA-10
The FESTO 3 Way Valve Terminal CPX-GP-CPA-10 is designed for efficient control of pneumatic systems. This valve terminal works seamlessly with FESTO double and single solenoid valves, providing reliable operation for various industrial applications.
Manufacturer: FESTO
Type: 3 Way Valve Terminal
Model: CPX-GP-CPA-10
Part No.: 195710
Technical Specifications

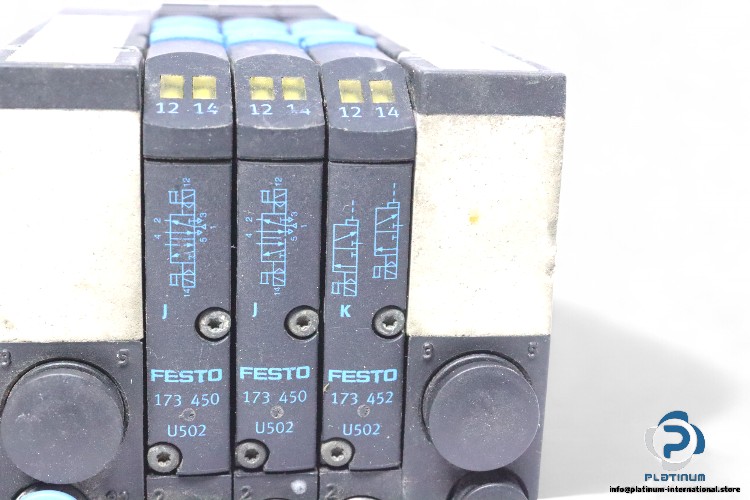

- Attachment 1: FESTO 173 450 Double Solenoid Valve
- Fluid: Air
- Type of Actuation: Electrically
- Operating Pressure: -0.9 … 10 bar / -0.09 … 1 MPa
- Voltage: 21 V DC
- Protection Class: IP65
- Temperature: -5 / 50 °C
- Pneumatic Connection: Sub-Base
- Width: 10 mm
- Attachment 2: FESTO 173 452 Single Solenoid Valve
- Type of Actuation: Electrically
- Operating Pressure: 3 … 10 bar
- Flow Rate: 220 l/m
- Voltage: 21 V DC
- Protection Class: IP65
- Temperature: -5 / 50 °C
- Pneumatic Connection: Sub-Base
- Width: 10 mm
