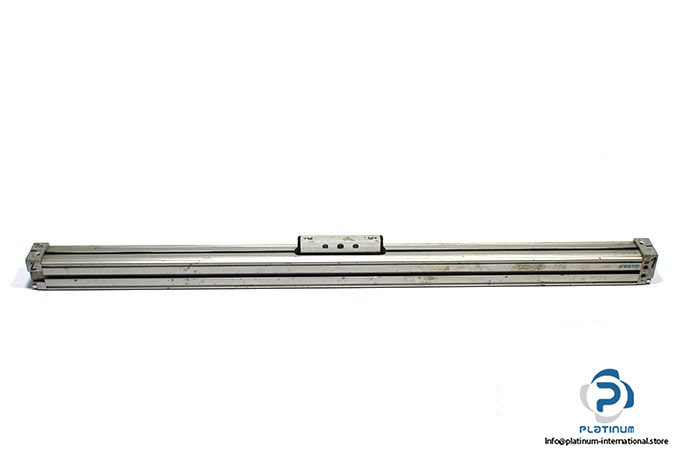

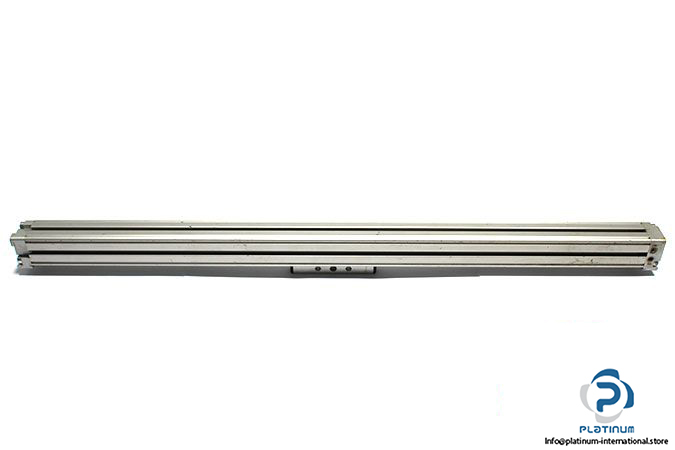

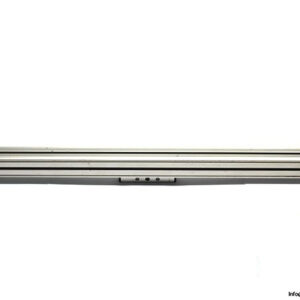

Manufacturer: Festo

Type: Linear Actuator

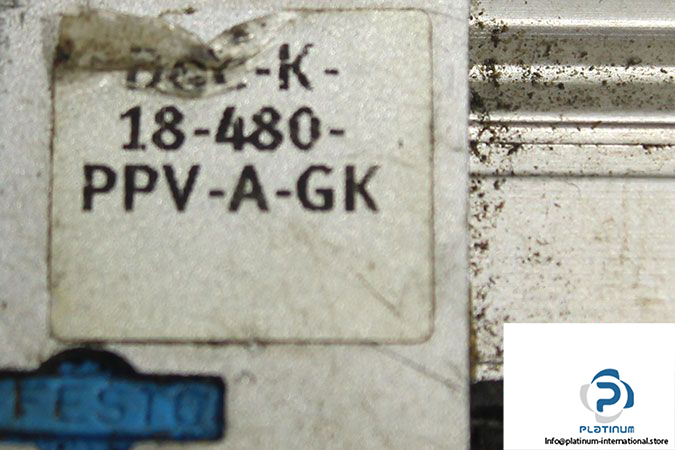

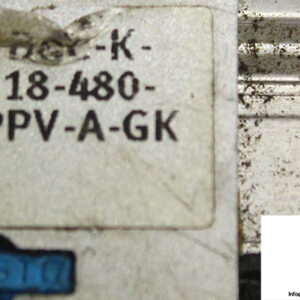

Model: DGC-K-18-480-PPV-A-GK

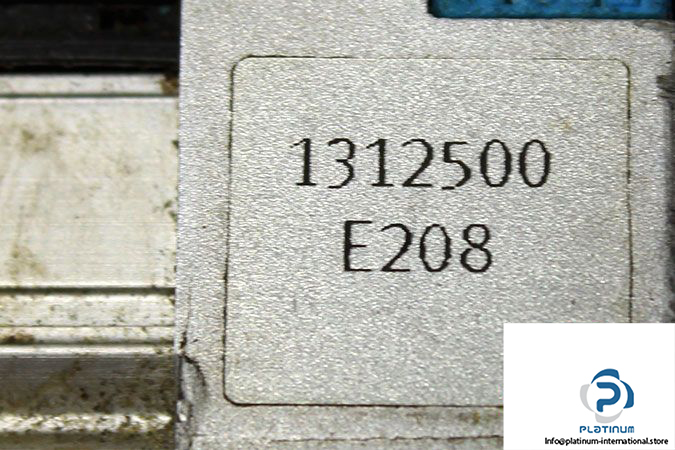

Part No: 1312500

Alternative Model: DGP-18-480-PPV-A-B

Alternative Part No: 158971

Piston Diameter: 18 mm

Cushioning: Adjustable at Both Ends, Pneumatic Cushioning

Stroke: 480 mm

Cushioning Length: 16 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 153 N

Theoretical Force At 6 Bar, Advancing: 153 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: 5 mm

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Materials: Aluminum

Weight: 1.14 kg
