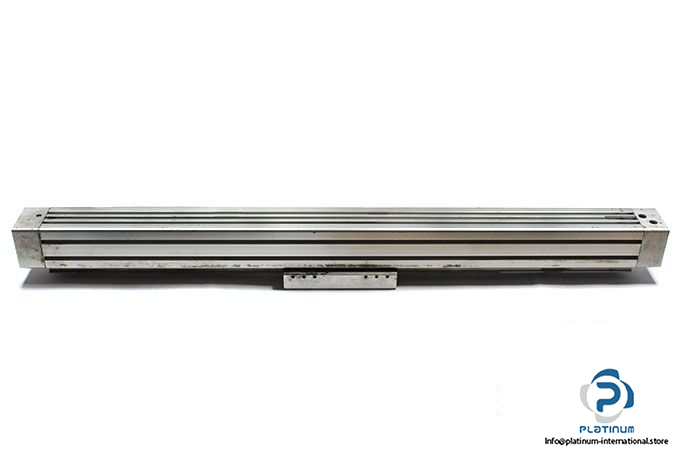

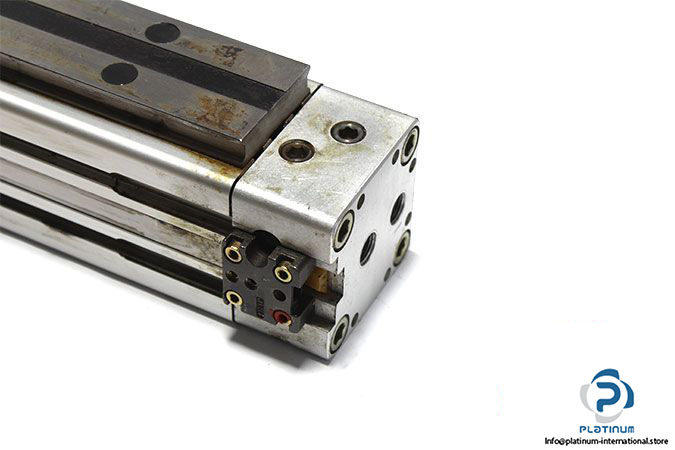

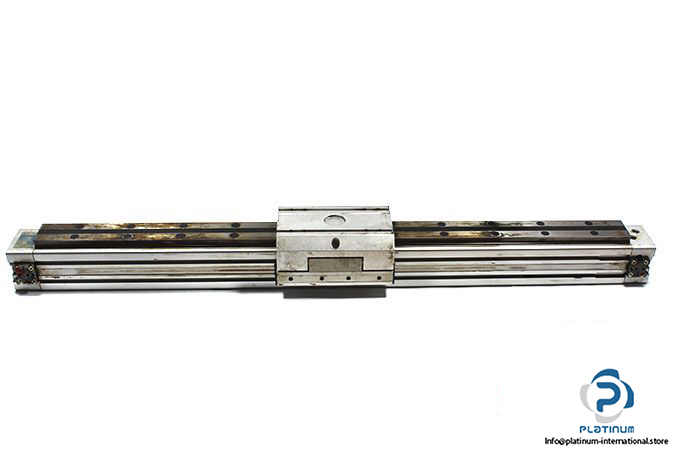

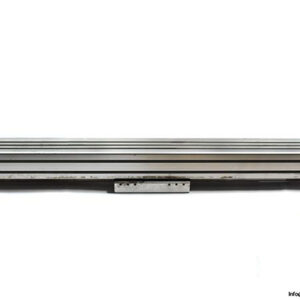

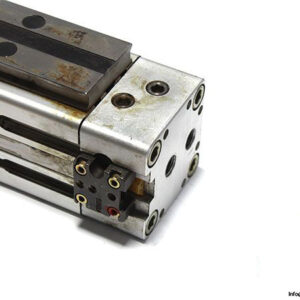

Manufacturer: FESTO

Type: Linear Actuator

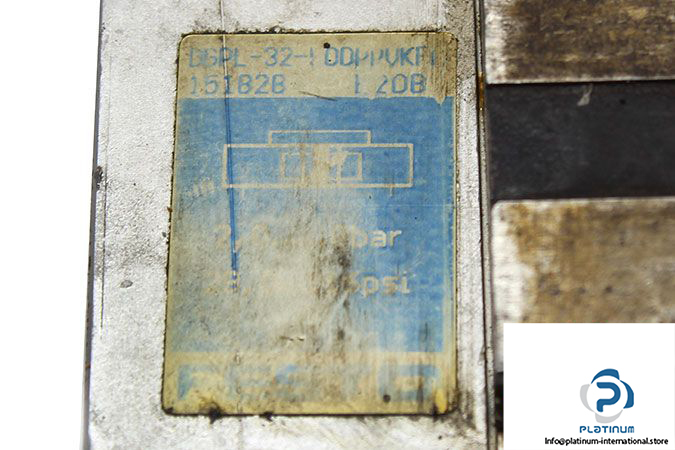

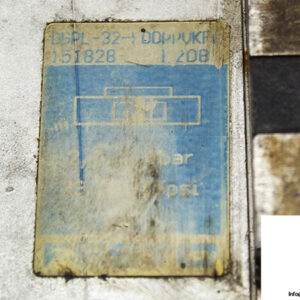

Model: DGPL-32-500-PPV-KF-A

Part No: 151828

Materials

• Cover: Aluminum
• Seals: NBR TPE-U(PU)

Piston Diameter: 32 mm

Cushioning: Adjustable at Both Ends

Stroke: 700 mm

Cushioning Length: 20 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 483 N

Theoretical Force At 6 Bar, Advancing: 483 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 6.315 kg
