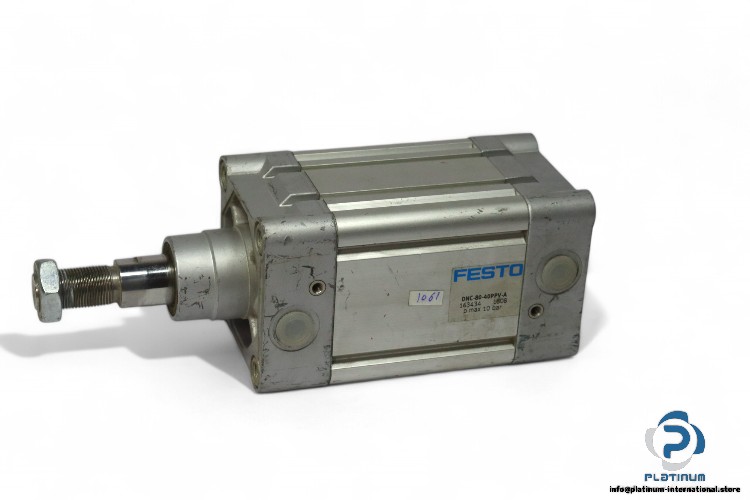

FESTO ISO Cylinder DNC-80-40PPV-A
The FESTO ISO Cylinder DNC-80-40PPV-A is a high-quality pneumatic cylinder designed for reliable and efficient operation in industrial automation systems. Built with a bore diameter of 80 mm and a stroke length of 40 mm, it is ideal for various applications requiring controlled and precise linear motion.
Manufacturer: FESTO
Model: DNC8040PPVA
Part No.: 163434
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 40 mm
- Bore x Stroke: 80 x 40 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 93 x 205 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
