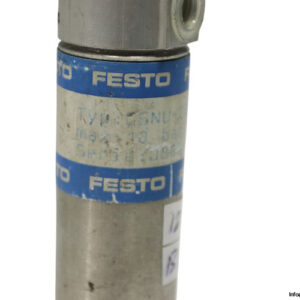

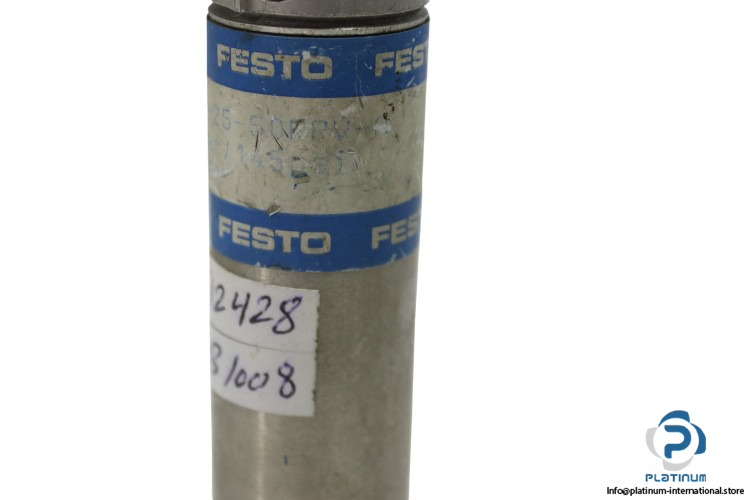

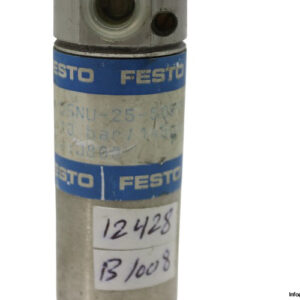

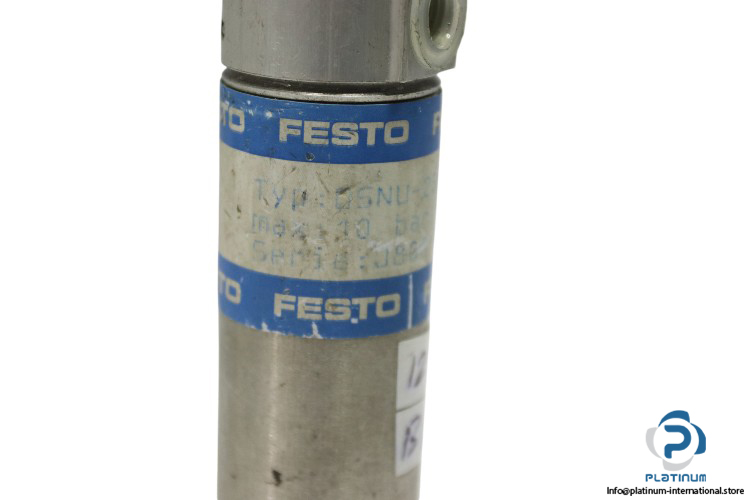

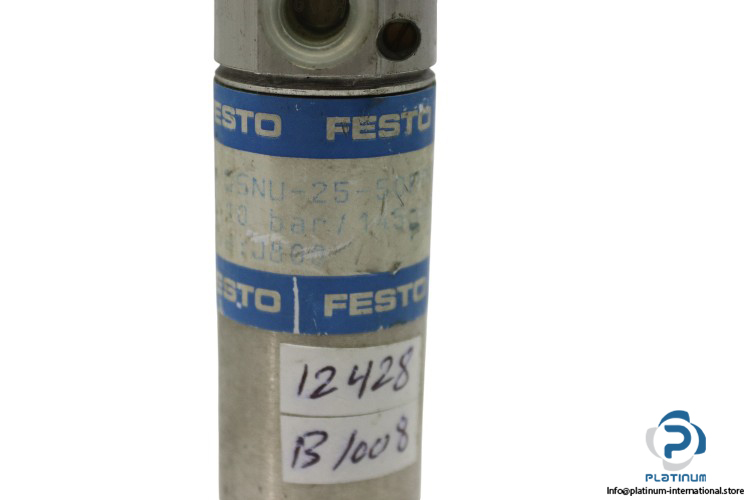

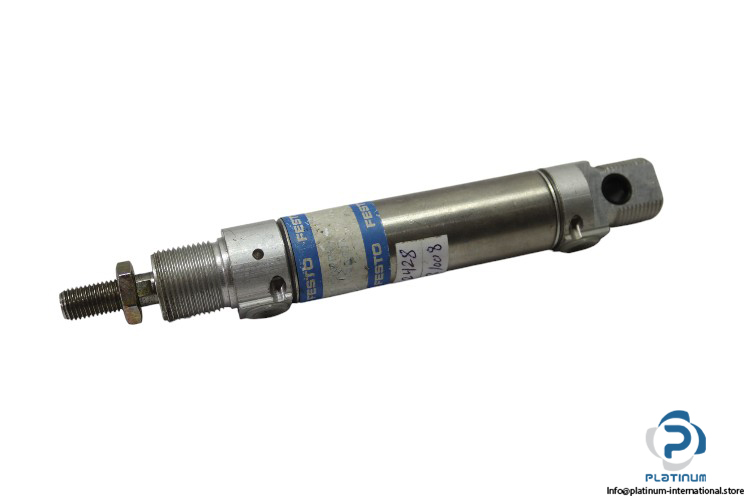

Festo DSNU-25-50-PPV-A “ ISO Cylinder
The Festo DSNU-25-50-PPV-A is a precision-engineered ISO pneumatic cylinder designed for demanding industrial automation systems. Featuring adjustable pneumatic cushioning and durable stainless steel construction, this double-acting cylinder provides reliable, smooth linear motion.
- Manufacturer: Festo
- Type: ISO Cylinder
- Model: DSNU-25-50-PPV-A
Technical Information:
- Bore Diameter: 25 mm
- Stroke: 50 mm
- Operating Medium: Compressed air
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Pneumatic Connection: G1/8
- Variants: Piston rod at one end
- Mode of Operation: Double acting
- Shape: Circular
- Ambient Temperature: -20 to 80 °C
- Max. Operating Pressure: 10 bar
- Cover Material: Wrought Aluminum alloy
- Seal Material: NBR
- Piston Rod Material: High-alloy stainless steel
- Cylinder Barrel Material: High-alloy stainless steel
