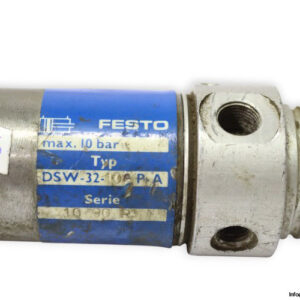

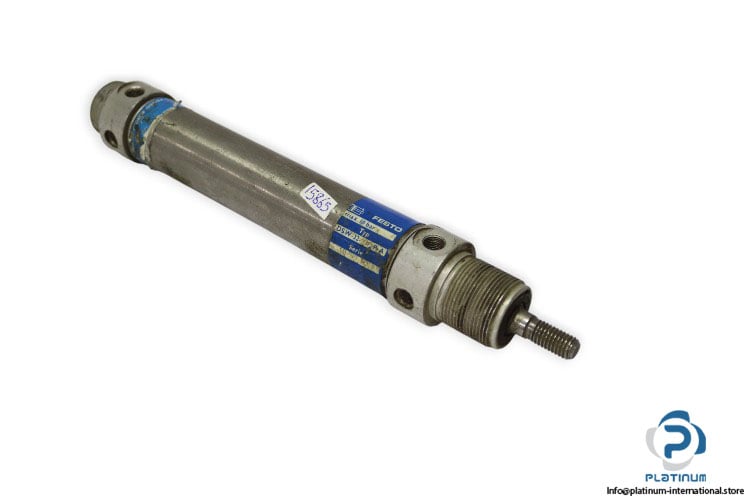

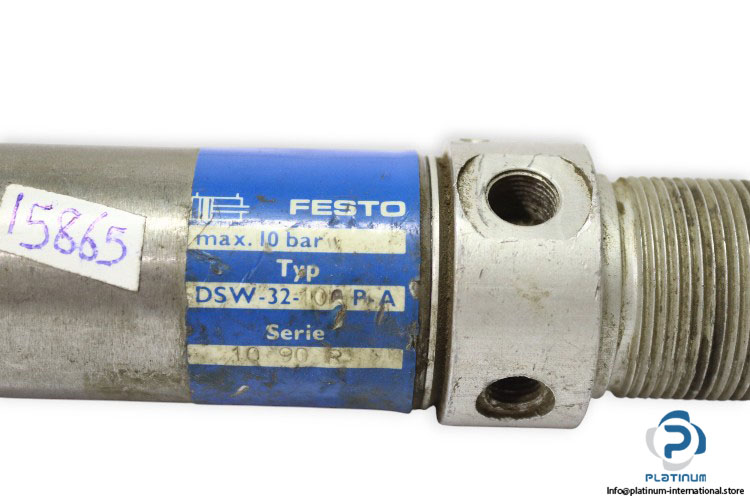

Festo DSW32100PA Round Cylinder
The Festo DSW32100PA from the DSW / 10 90 R series is a high-performance pneumatic round cylinder designed for precise linear motion in industrial automation. Featuring a double-acting piston, robust construction, and end position cushioning, it ensures reliable performance under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW32100PA
Series: DSW / 10 90 R
Technical Information
- Stroke Length: 100 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: 12 mm
- Pneumatic Connection: G1/8
- Operating Medium: Compressed Air
- Cushioning: End Position Cushioning
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-acting
- Ambient Temperature: -20 to 80 °C
