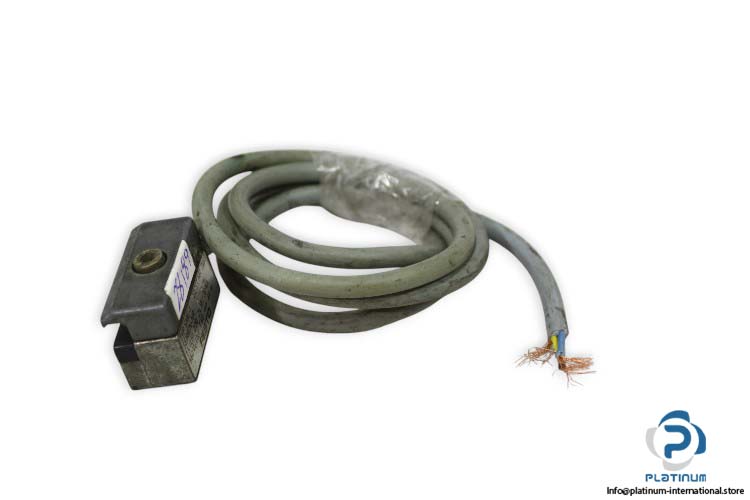

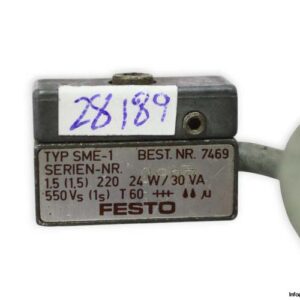

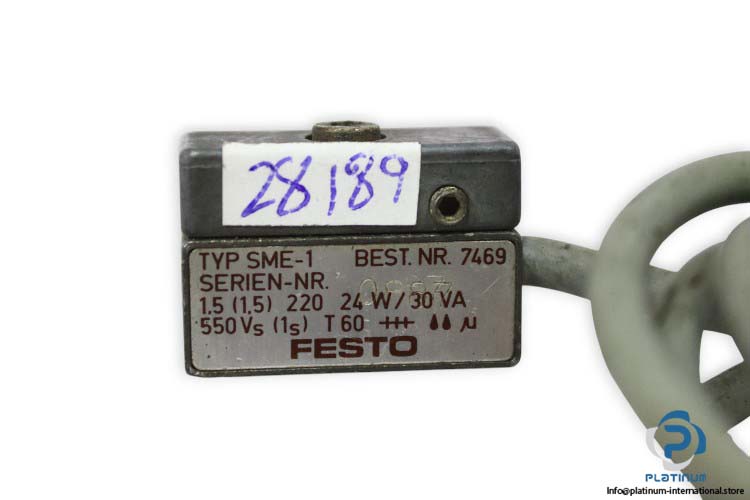

FESTO SME-1 PROXIMITY SWITCH
The Festo SME-1 is a high-precision proximity switch designed for reliable performance in industrial automation environments. Utilizing a magneto-inductive measuring principle, it ensures fast and accurate switching with excellent protection and durability. This compact switch is built with robust housing materials and offers simple installation using a clamping angle on a mounting rod. A dependable solution for detecting magnetic fields in automation systems.
Manufacturer: Festo
Type: Proximity Switch
Model: SME-1
Part No.: 7469
Technical Information
- Measuring Principle: Magneto Inductive
- Operating Voltage: 220 V AC
- Switching Frequency: 500 Hz
- Max. Permissible Voltage Peaks: 550 V AC
- Switching Time: 2 ms
- Switching Output: Normally Open
- Connector Type: Cable, 2.5 m
- Type of Protection: IP66
- Ambient Operating Temperature: -20 / 60°C
- Dimensions: 15 x 23 x 34 mm
- Housing Material: Zn Diecast, Epoxy Resin
- Mounting: Using Clamping Angle on Mounting Rod
