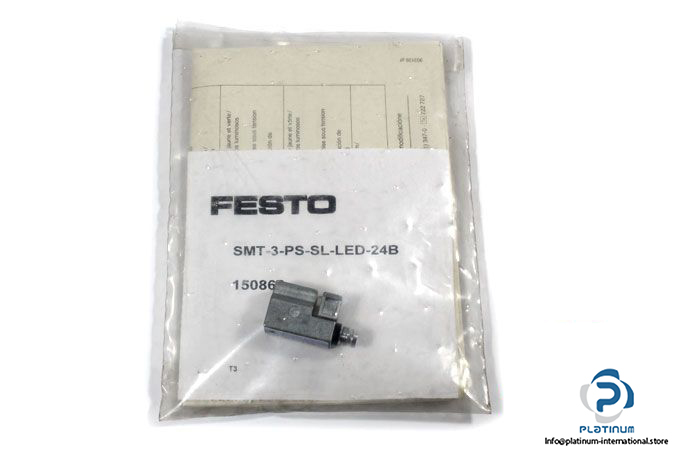

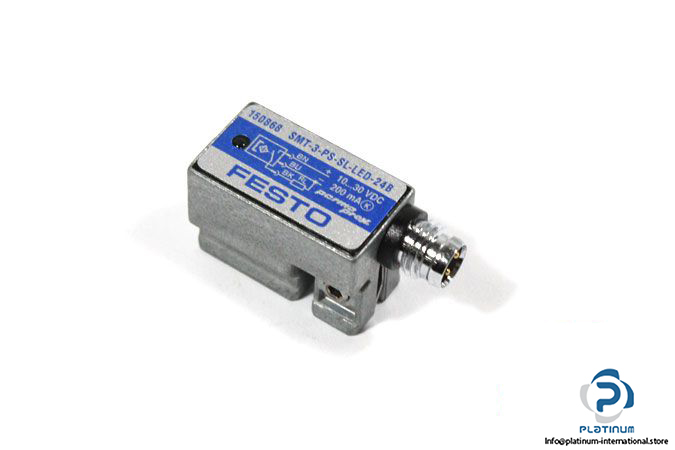

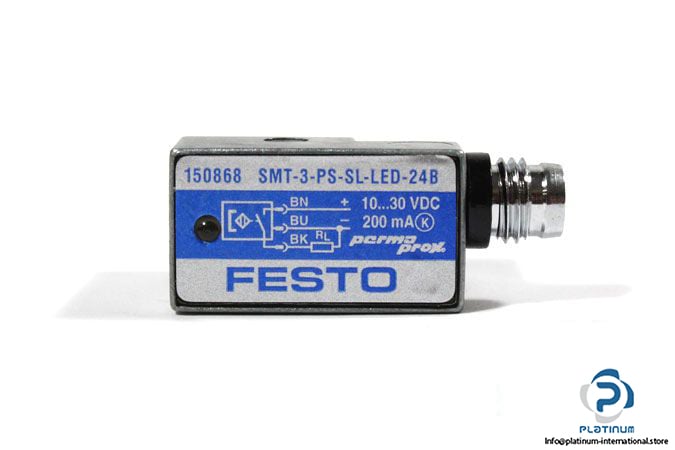

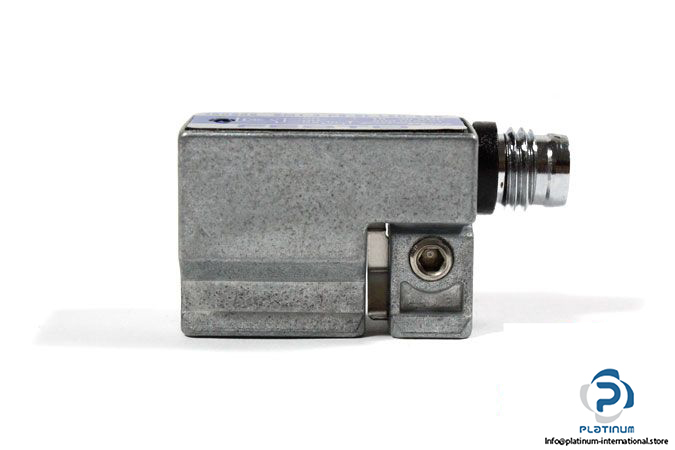

Manufacturer: FESTO

Type: INDUCTIVE PROXIMITY SWITCH

Model : SMT-3-PS-SL-LED-24B

Part No.: 150868

Application: Used with short-stroke cylinders for proximity sensing

Operating Voltage: 10 … 30 V DC

Switching Current: 200 mA

Switching Capacity: 6 W

Switching Frequency: 1 kHz

Switching Accuracy: ± 0.1 mm

Magnetic Induction: 2 mT- 35 mT

Electrical Design: PNP

Switching Output: Normally Open

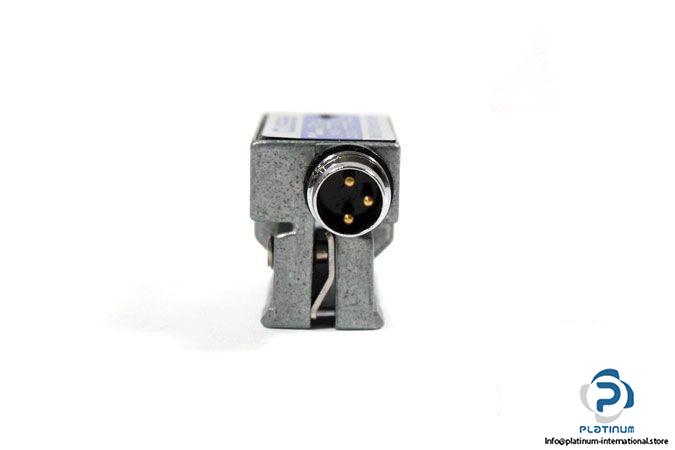

Connector Type: M8 Connector, 3-pin

Enclosure Rating: IP67

Ambient Operating Temperature: -20 … 70°C

Dimensions: 15 x 19 x 26 mm

Housing Material: Zinc die-cast

Mounting: any Piston along dovetail groove

Weight”: 35 g
