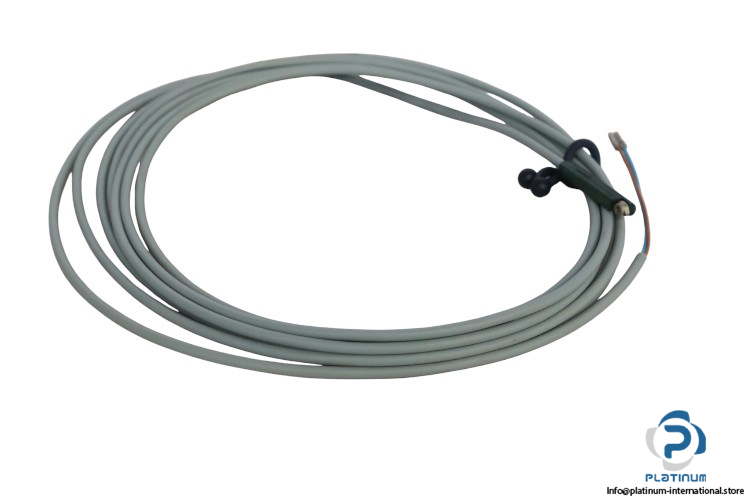

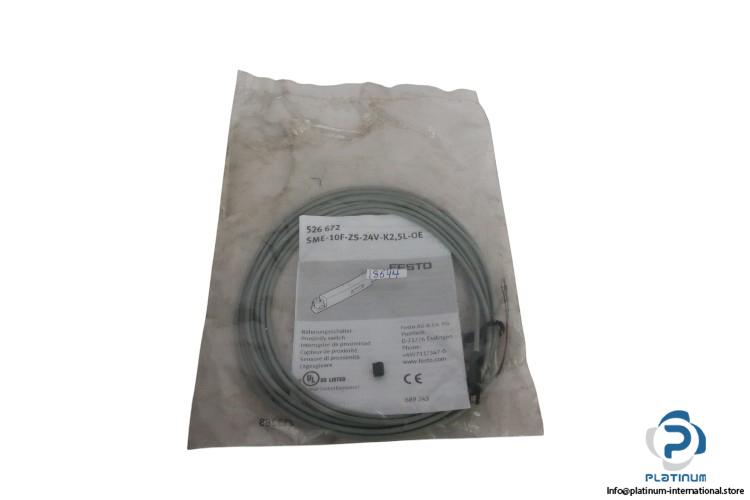

Festo SME-10F-ZS-24V-K2,5L-OE Proximity Sensor
The FESTO SME-10F-ZS-24V-K2,5L-OE Proximity Sensor features a 5 to 30 V AC/DC voltage range, Reed magnetic measuring principle, and is designed for round slots. It provides IP65/IP67 protection and operates in temperatures from -20°C to 60°C.
Product Overview
Manufacturer: FESTO
Type: Proximity Sensor
Model: SME-10F-ZS-24V-K2,5L-OE
Part No.: 526 672
The FESTO SME-10F-ZS-24V-K2,5L-OE Proximity Sensor is designed for round slot applications and is ideal for use in industrial environments. It operates within a voltage range of 5 to 30 V AC/DC and features a Reed magnetic measuring principle. The sensor is designed with an axial cable exit direction and comes with a 2.5 m long cable for easy installation. The sensor supports a maximum switching frequency of 800 Hz and an output current of 100 mA. The contact rating is 3 VA for AC and 3 W for DC. The sensor offers IP65 and IP67 protection class ratings, making it suitable for use in harsh conditions. It operates within an ambient temperature range of -20°C to 60°C and has a degree of contamination rating of 3 for optimal performance.
Key Specifications:
- Design: For round slot
- Operating Voltage Range: 5 … 30 V AC/DC
- Insulation Voltage: 50 V
- Electrical Connection: Cable, 2-core
- Cable Length: 2.5 m
- Tightening Torque: 0.2 Nm
- Measuring Principle: Reed magnetic
- Switching Element Function: Normally open contact
- Max. Switching Frequency: 800 Hz
- Max. Output Current: 100 mA
- Max. Contact Rating AC: 3 VA
- Max. Contact Rating DC: 3 W
- Protection Class: IP65, IP67
- Ambient Temperature: -20 … 60°C
This sensor is designed for use in harsh conditions with high protection ratings and operational stability, making it ideal for industrial environments requiring accurate and reliable proximity sensing.
