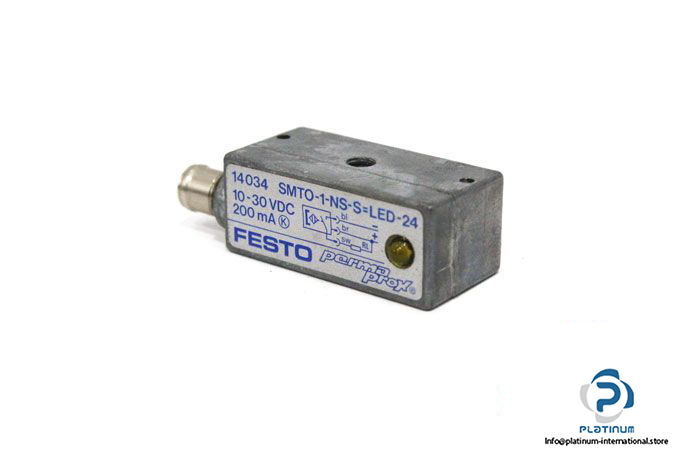

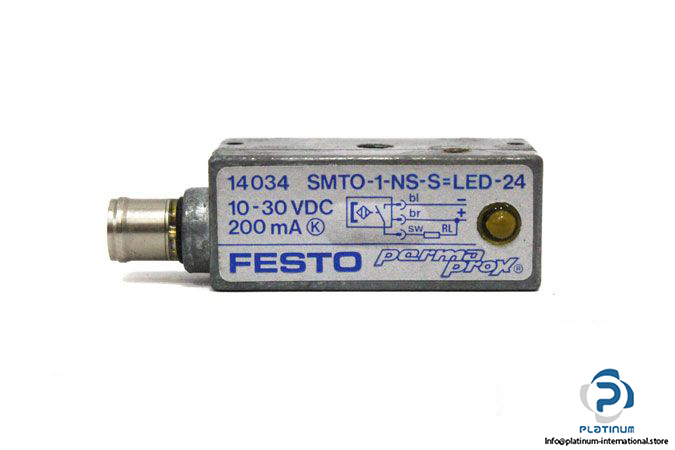

Manufacturer:  Festo

Type: Proximity Sensor

Model: SMTO-1-NS-S-LED-24

Part No.: 14034

Measuring Principle: Magneto-Inductive

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Electrical Design: NPN

Switching Output: Normally Open

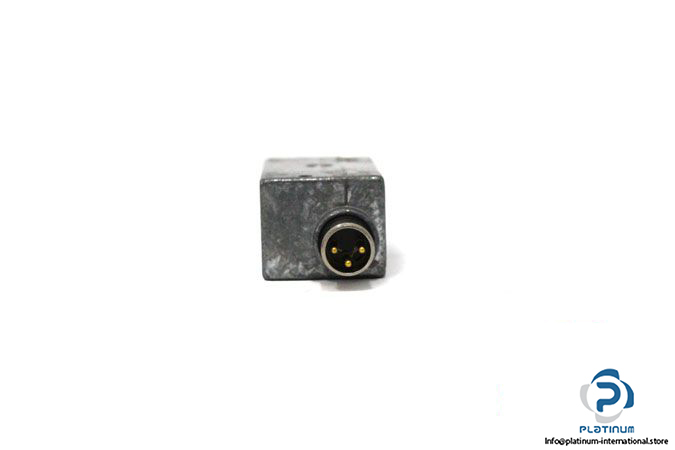

Connector Type: M8 Connector, 3 –Pin

Switching Status Display: LED

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions:  15.5 x 14 x 42.3 mm

Weight: 0.025 kg

Housing Material: Steel, Zinc Die-Cast
