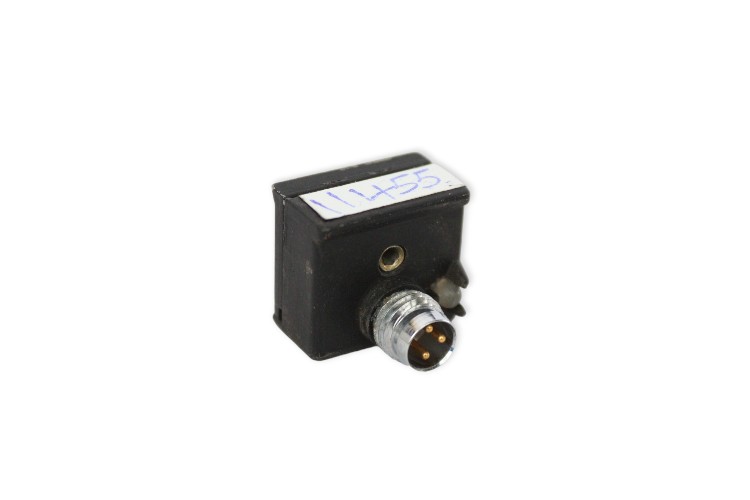

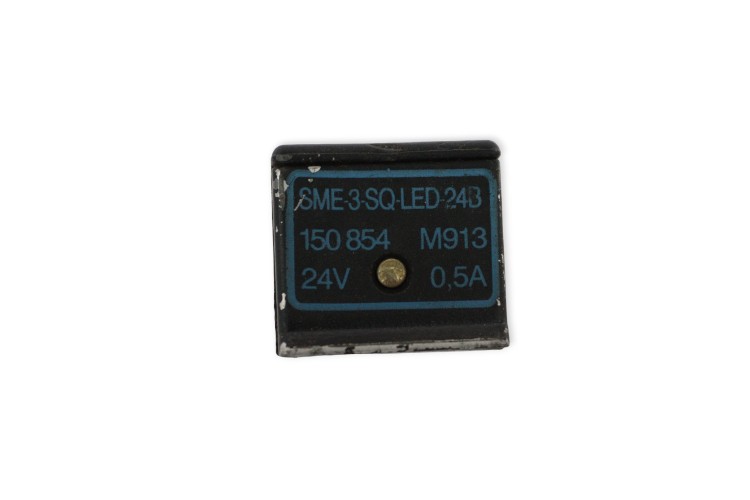

Festo SME-3-SQ-LED-24B Electrical Reed Switch
Manufacture: Festo
Type: Proximity Switch, Electrical Reed Switch
Model: SME3SQLED24B
Part No.: 150854
Measuring principle: Magnetic reed
Operating Voltage: 24 V (12 … 27 V AC/DC)
Switching Current max.: 500 mA
Switching Capacity max.: 10 W
Switching frequency: 800 Hz
Switching time max.: 0.5 ms
Switching output: Normally open
Connector type: M8 Connector, 3-pin
Enclosure rating: IP66
Housing material: Epoxy resin
Ambient Operating temperature: -20 … 60°C
Dimensions: 18 x 10 x 20 mm
