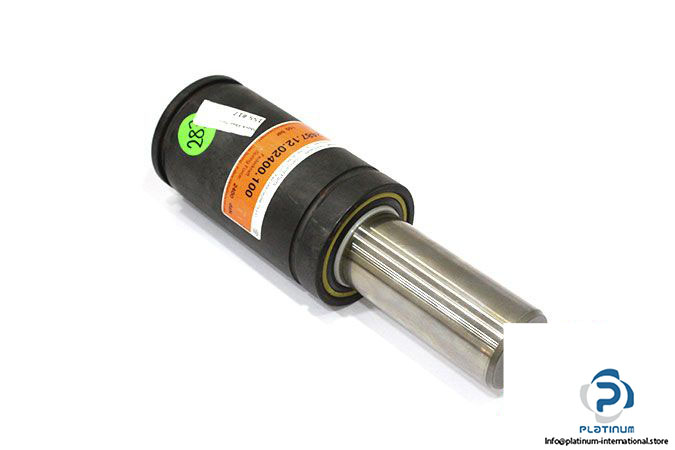

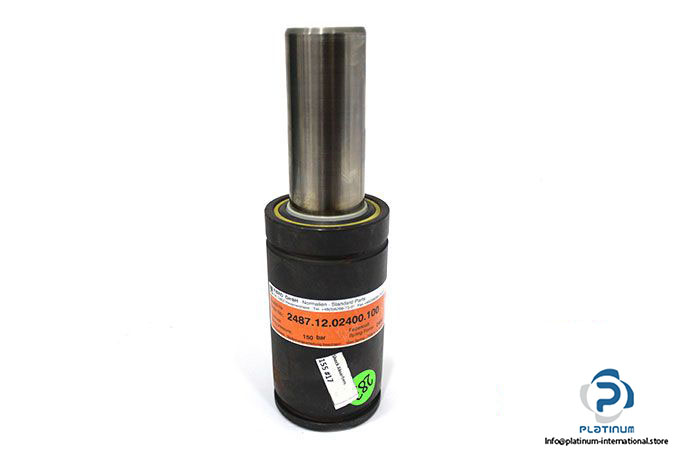

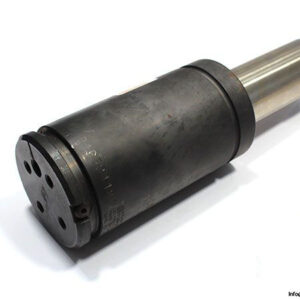

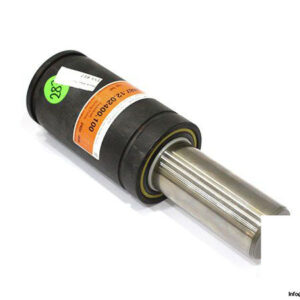

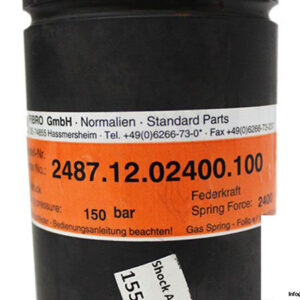

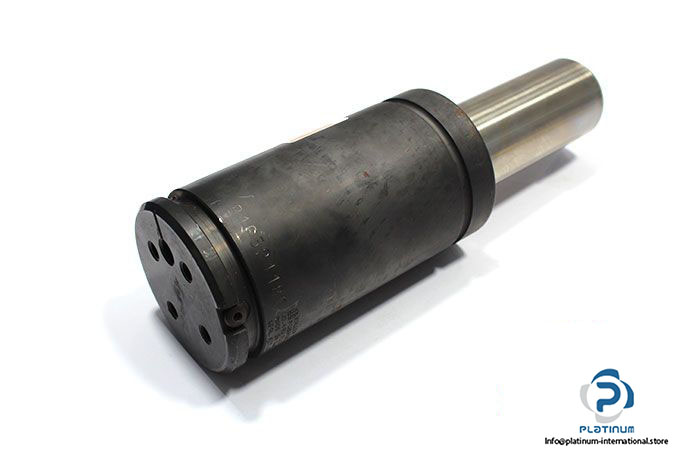

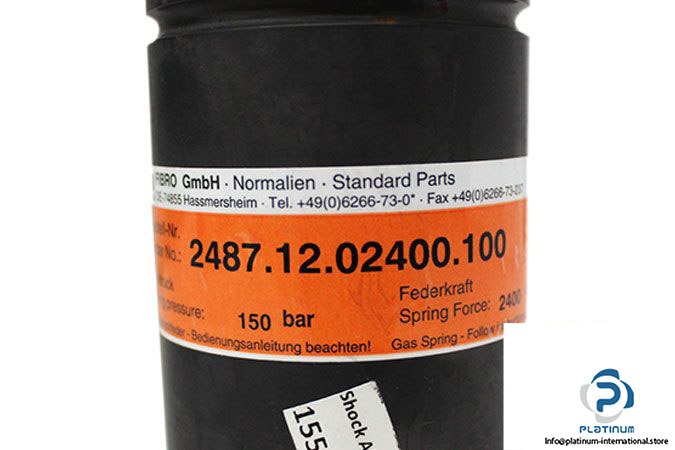

Fibro POWERLINE Gas Spring
The Fibro POWERLINE gas spring is engineered for high-performance industrial applications requiring consistent force, long service life, and reliable motion control. Built to withstand demanding operating conditions, it delivers stable force output and smooth operation, making it ideal for tooling systems, stamping dies, and automated machinery. Its durable construction and nitrogen-filled design ensure long-lasting efficiency and minimal maintenance requirements.
Manufacturer: Fibro
Type: Gas spring
Order No.: 2487.12.02400.100
Series: POWERLINE
Technical Information
- Initial spring force at 150 bar: 2400 daN
- Pressure medium: Nitrogen N2
- Max. filling pressure: 150 bar
- Min. filling pressure: 25 bar
- Stroke: max. 100 mm
- Outer Diameter: 75 mm
- Working temperature: 0°C to +80°C
- Temperature related force increase: ± 0.3 percent/°C
- Max. recommended extensions per minute: approx. 20 to 100 (at 20°C)
- Max. piston speed: 1.6 m/s
Recommendation
The POWERLINE series is highly recommended for demanding industrial tooling, die construction, and applications requiring stable and repeatable force output. Its robust nitrogen-filled design offers exceptional reliability, reduced downtime, and superior performance compared to conventional mechanical springs. For customers seeking long-term value, low maintenance, and precision force control, this gas spring is one of the best solutions in its class.
