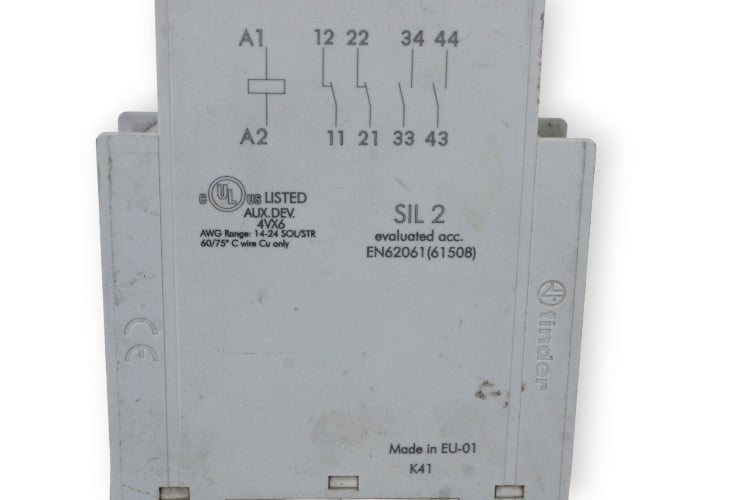

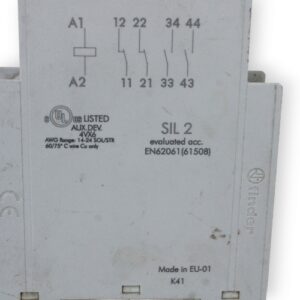

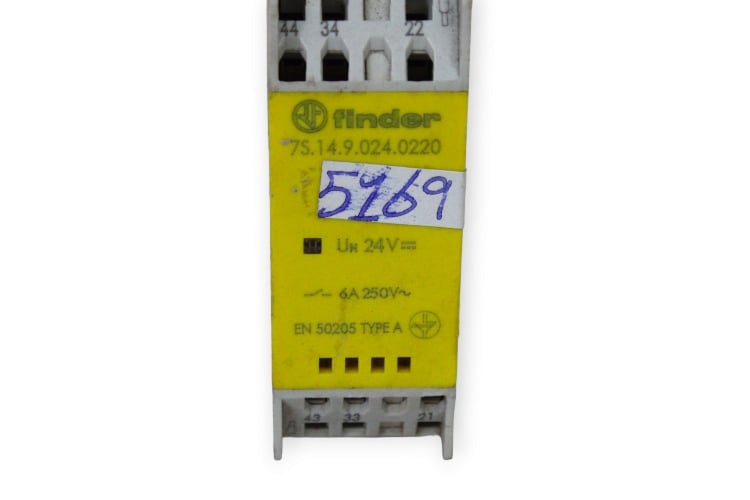

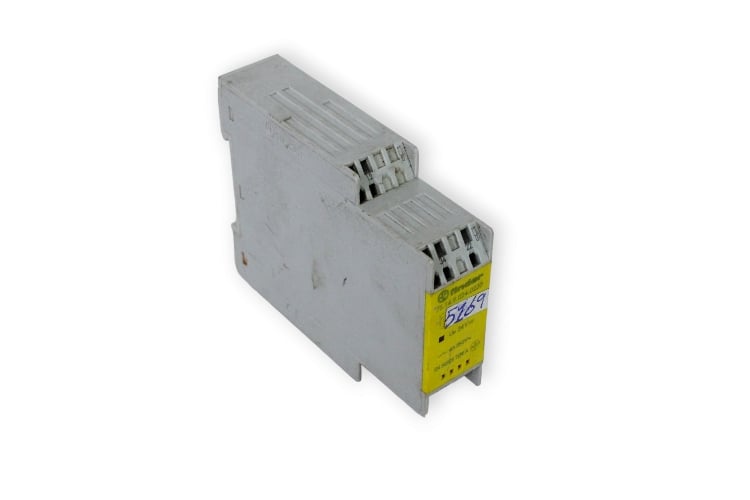

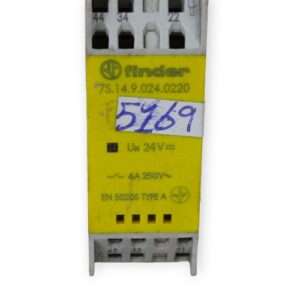

Finder 7S.14.9.024.0220 Modular Relay

The Finder 7S.14.9.024.0220 modular relay is a compact and reliable interface relay designed for control and automation panels. It features a 24 V DC coil, 4 contacts, and high switching capability, ensuring efficient performance for signal control, load management, and industrial automation systems.

Manufacturer: Finder
Type: Modular Relay
Model: 7S.14.9.024.0220

Technical Information

Operating Voltage: 0.85 / 1.1 V AC / 0.8 / 1.2 V DC
Nominal Voltage: 110 / 240 V AC

Coil Data

Nominal Voltage: 24 V DC
Operating Range: 16.8 / 30 V
Rated Input Current: 28 mA
Rated Power: 0.7 W

Contact Information

Contact No.: 4 Contacts
Contact Voltage: 250 V AC
Contact Current: 6 A
Switching Type: 2 Normally Open, 2 Normally Close

Additional Information

Operating Temperature: -40 / 70 °C
Degree of Protection: IP20
Dimensions: 100.3 x 86.2 x 22.5 mm
