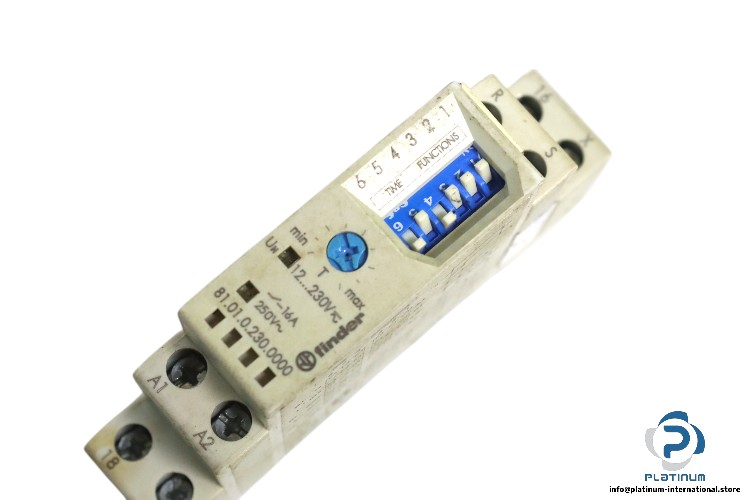

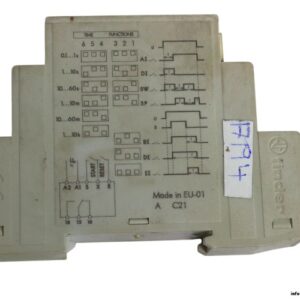

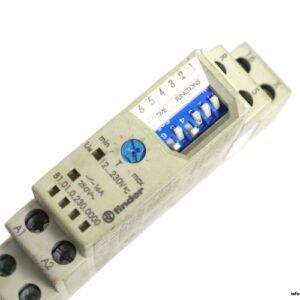

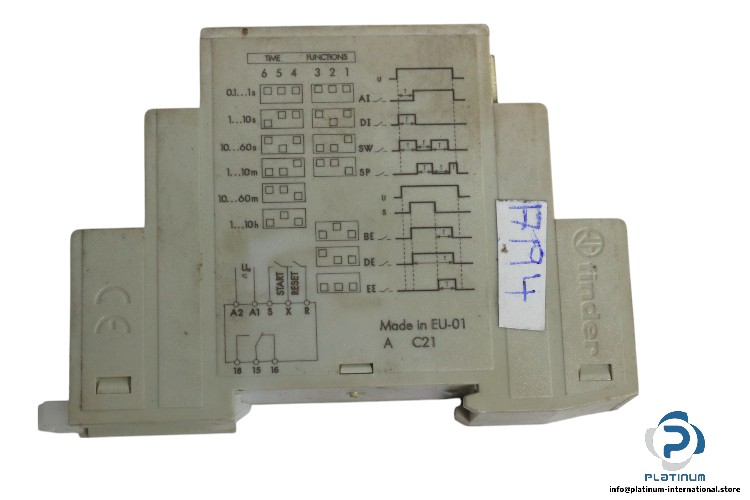

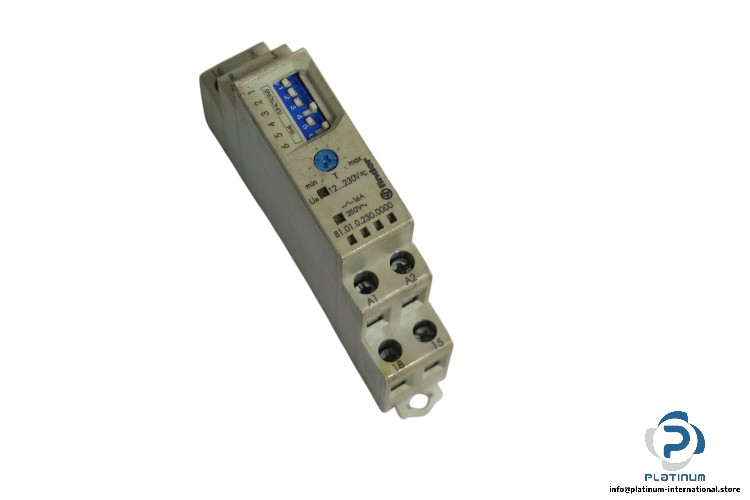

FINDER Modular Timer 81.01.0.230.0000

The FINDER 81.01.0.230.0000 is a versatile modular timer designed for precise time control in industrial and commercial applications. With its wide voltage range and multiple timing options, it ensures reliable operation across a variety of use cases.

🔧 Technical Specifications:

• Manufacturer: FINDER
• Type: Modular Timer
• Model: 81.01.0.230.0000
• Supply Voltage: 230 V AC
• Rated Voltage: 250 V AC
• Nominal Voltage (UN): 12 / 230 V AC/DC
• Contact: 1 CO (SPDT)
• Rated Current: 16 A
• Specified Time Range:
  • 0.1 / 1 s
  • 1 / 10 s
  • 10 / 60 s
  • 1 / 10 min
  • 10 / 60 min
  • 1 / 10 h
• Ambient Temperature Range: -10 / +50°C
• Protection Degree: IP20
• Dimensions: 88.9 x 17.5 x 60.8 mm
