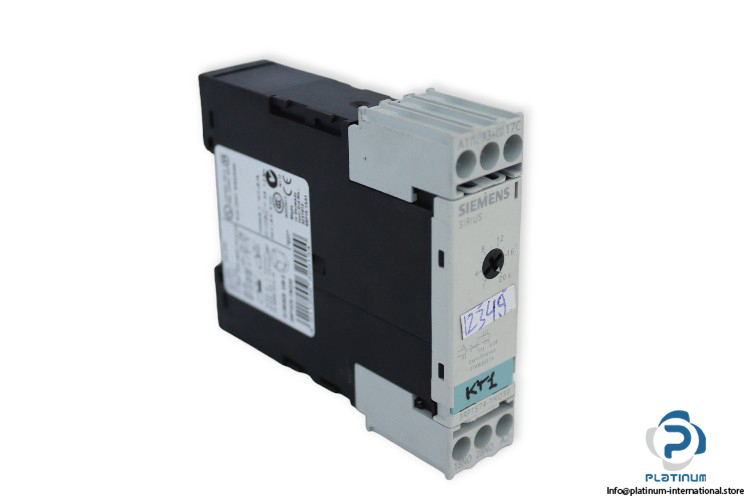

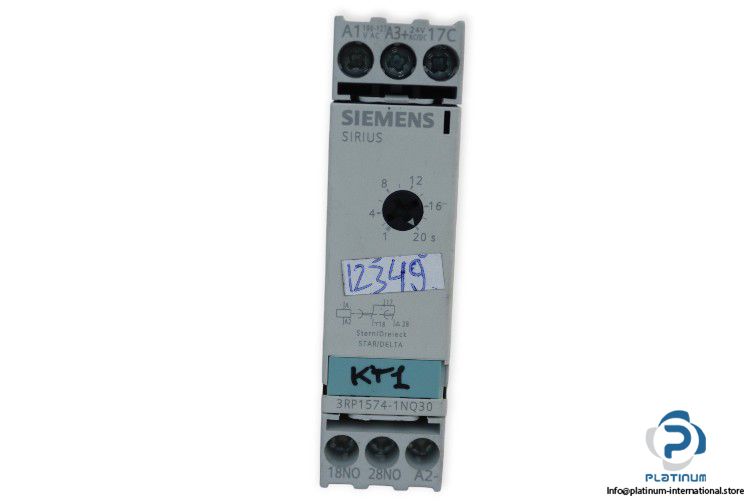

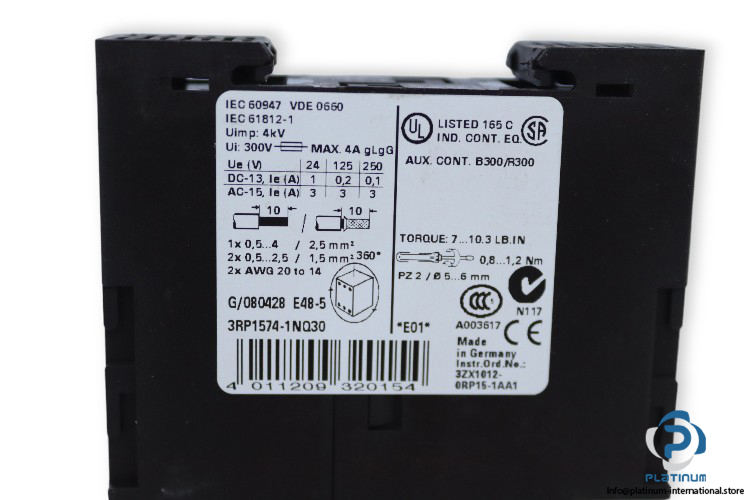

Siemens 3RP1574-1NQ30 Time Relay
Manufacturer: SIEMENS
Type: Time Relay
Model: 3RP15741NQ30
Range: SIRIUS
Control Supply Voltage: 24 V AC / DC
Thermal Current: 5 A
Frequency: 50 … 60 Hz
Power Loss Max.: 2 W
Contact: 2 Normally Open (NO)
Contact Operational Rating:
AC-15: 24, 250 V, 3 A
DC-13:
24 V: 1 A
125 V: 0.2 A
250 V: 0.1 A
Time Range: 1 … 20 s
Protection Class: IP20
Ambient Temperature: -25 … 60 °C
Dimensions: 83 x 22.5 x 91 mm
