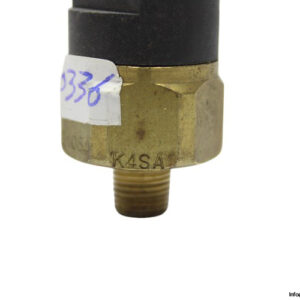

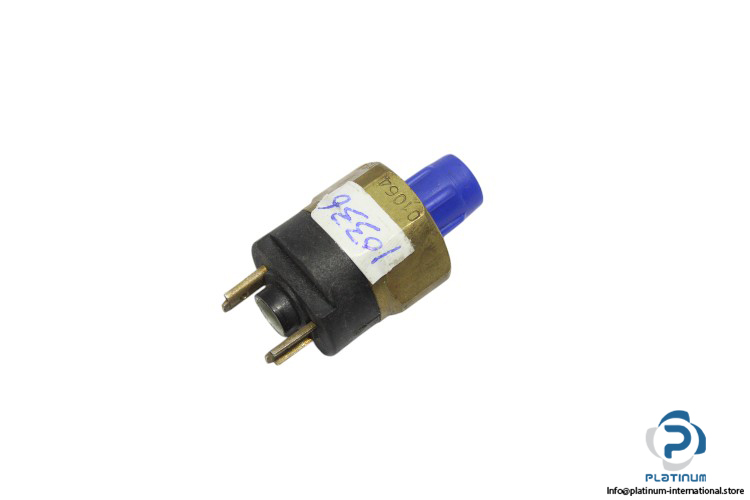

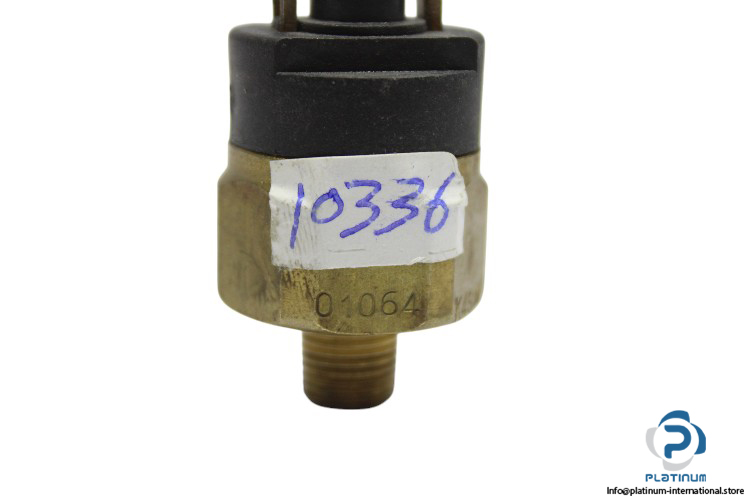

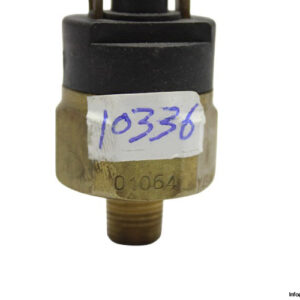

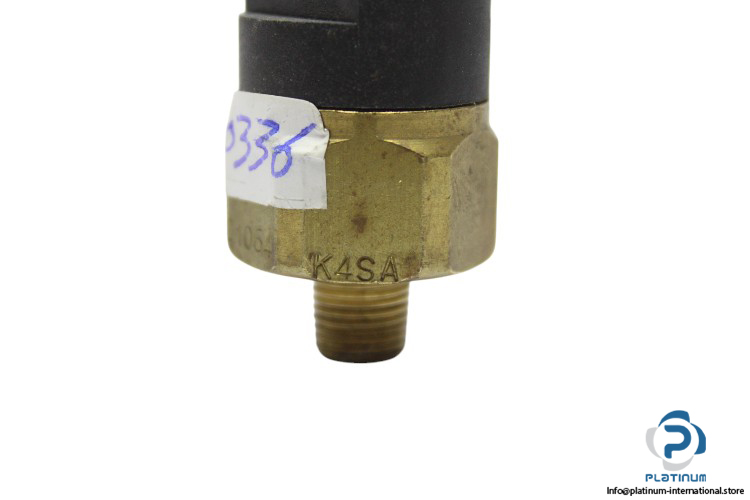

FOX OPERA Pressure Switch K4SA
The FOX OPERA Pressure Switch K4SA is designed for precise pressure monitoring and control in industrial applications. With a switching pressure range of 1 to 12 bar and a maximum working pressure of 25 bar, this reliable pressure switch ensures accurate performance in harsh environments. It operates with a rated voltage of 250 V AC / 110 V DC and a rated current of 0.5 / 0.15 A. The normally open (NO) switch output, G 1/8 pressure connection size, and IP54 protection class make it ideal for a variety of industrial and automation systems.
Manufacturer: FOX OPERA
Type: Pressure Switch
Model: K4SA
Technical Specifications
- Switching Pressure Range: 1 / 12 bar
- Working Pressure Max.: 25 bar
- Rated Voltage: 250 V AC / 110 V DC
- Rated Current: 0.5 / 0.15 A
- Switch Output: Normally Open (NO)
- Pressure Connection Size: G 1/8
- Protection Class: IP54
- Temperature: -25 / 85 °C
- Length, Diameter: 47, 26 mm
