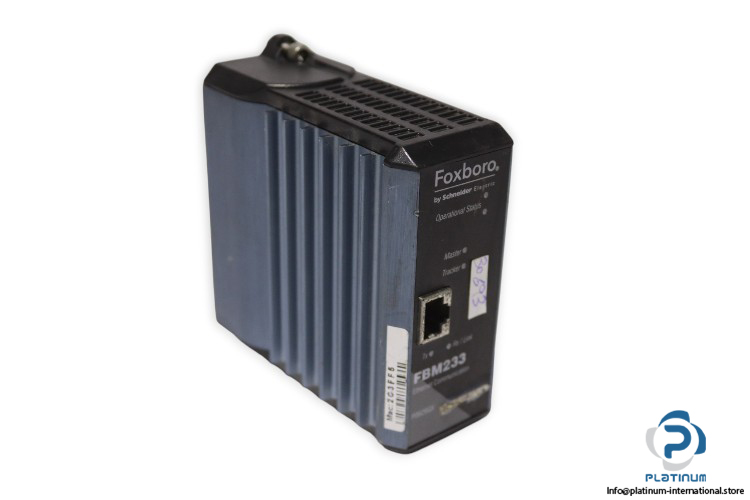

Schneider Foxboro FBM233 Ethernet Communication Module
The Schneider Foxboro FBM233 is a field device system integrator module designed for reliable Ethernet communication in industrial automation. It ensures stable connectivity, efficient power usage, and flexible mounting for demanding environments.
Manufacturer: Schneider Foxboro
Type: Ethernet Communication Module / Field Device System Integrator Module
Model: FBM233
Part Number: P0926GX
Technical Information
- Input Voltage Range (Redundant): 24 V DC
- Consumption: 7 W maximum
- Heat Dissipation: 7 W maximum
- Interfaces: Ethernet port (RJ45) for network communication

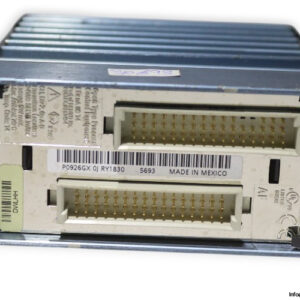

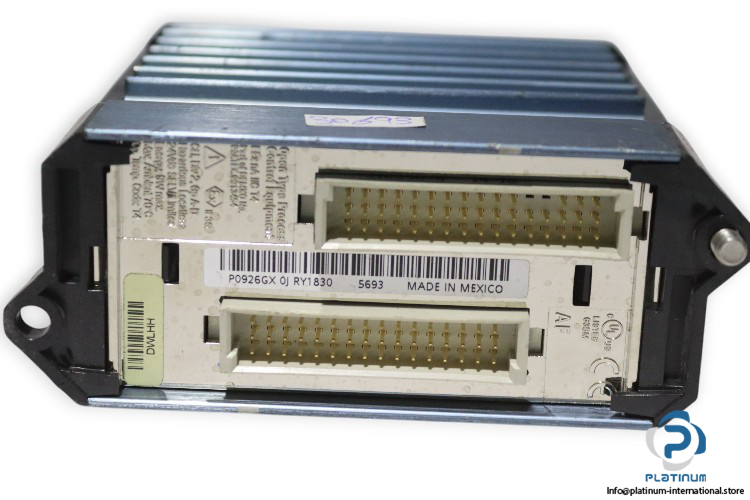

- Connectors: Dual high-density backplane (system I/O and control bus)

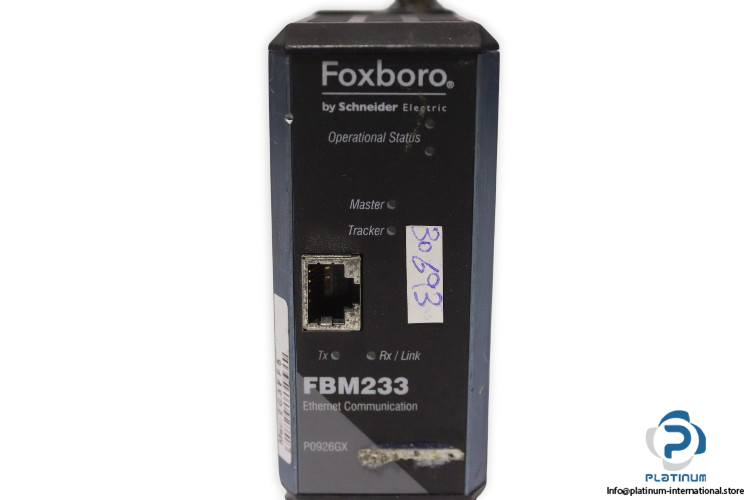

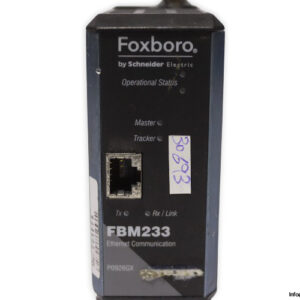

- Status Indicators: Tx, Rx/Link, Master, Tracker LEDs
- Mounting: DIN rail / system enclosure rack mount
- Operating Temperature: -20 to +70 °C
- Height: 102 mm (114 mm including mounting lugs)
- Width: 45 mm
- Depth: 104 mm
- Additional Accessory: Null Hub Adapter P0971PK
