Manufacturer: GE
Type: Contactor

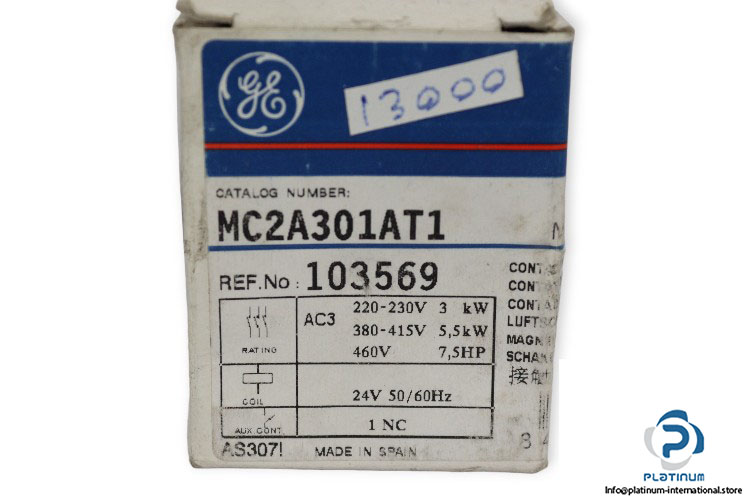

Model: MC2A 301 AT 1
Part No: 103569

Coil Voltage: 24 V AC, 50/60 Hz
Rated Insulation Voltage (Ui): 750 V
Thermal Current: 20 A
Rated Impulse Withstand Voltage (Uimp): 6 KV
Number of Poles: 3
Standard: IEC/EN 60947-4-1, VDE 0660
Number of Auxiliary Contacts NC: 1
Power:
AC3: 5.5 kW (380 … 415 V AC)
AC1: 13 kW (400 V AC)
AC3: 7.5 HP (460 V AC)
Operating Temperature: -40 … +70 °C
Dimensions: 45 x 48 x 56 mm
