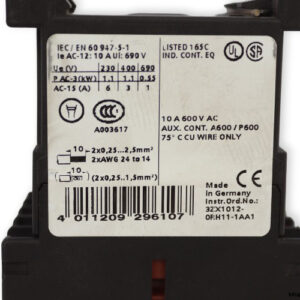

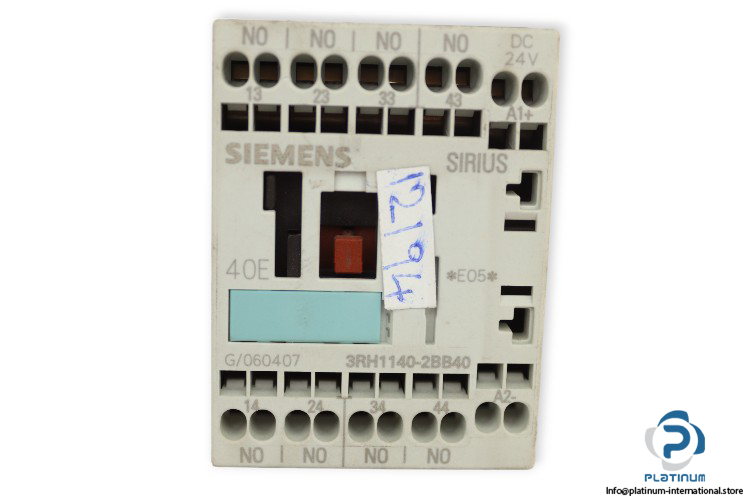

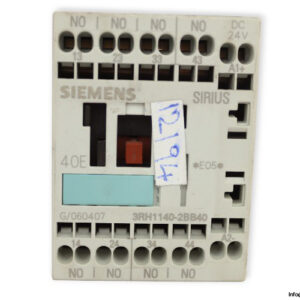

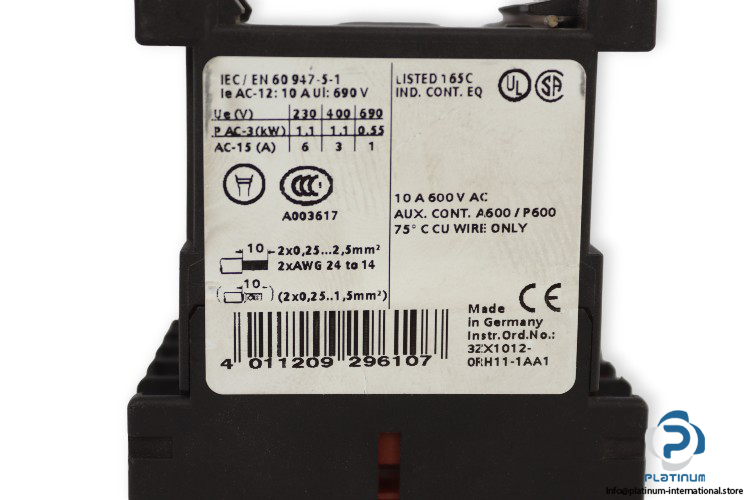

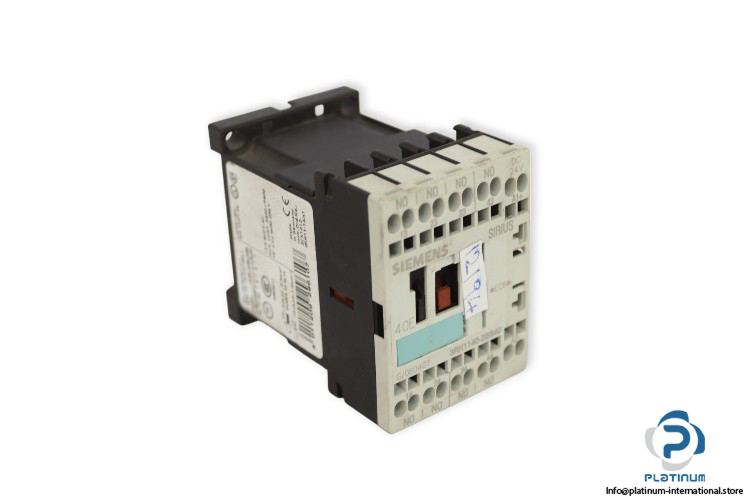

Siemens 3RH1140-2BB40 Contactor Relay

Manufacturer: Siemens
Type: Contactor Relay
MNR: 3RH11402BB40
Product Brand Name: SIRIUS

Size of contactor: S00
Control supply voltage: 24 V DC
Insulation voltage Ui: 690 V
Surge voltage resistance Rated value: 6 Kv
Identification number: 40E
Operating current at AC-12 maximum: 10 A
Operating current at AC-15 @400 V: 3 A
Operating power at AC-15 @400 V: 1.1 kW
Auxiliary Contact: 4 Normally open
Type of mounting: screw and snap-on mounting
General use: 600 V AC,10 A
Protection degree: IP20
Standard: IEC/EN 60947-5-1
Operating temperature: -25 … 60°C
Dimensions: 60 x 45 x 73 mm
