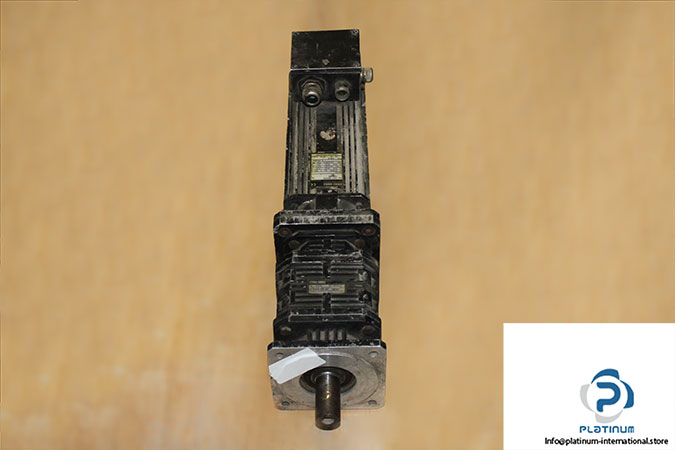

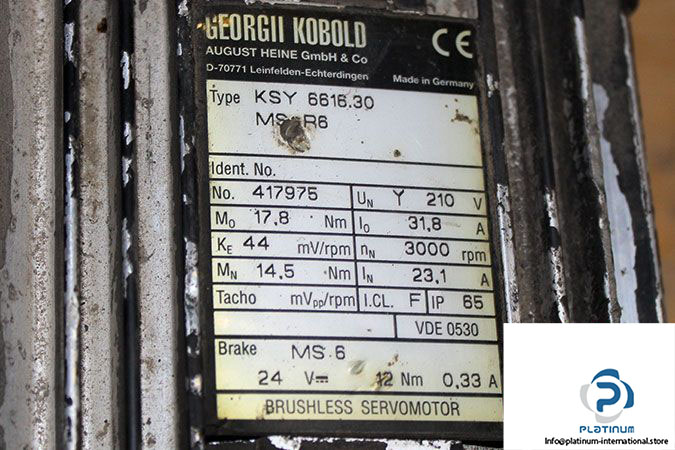

Manufacturer: August Heine Gmbh & Co / Georgii Kobold

Type: Brushless Servo Motor

Model: KSY 6616.30 MS-R6



Rated Voltage: 210 V

Voltage Constant: 44 mV/rpm

Rated Current: 23.1 A

Stall Current: 31.8 A

Rated Speed: 3000 min^-1

Rated Torque: 14.5 Nm

Stall Torque: 17.8 Nm

Voltage Brake: 24 VDC

Current Brake: 0.33 A

Torque Brake: 12 Nm

Insulation Class: F

Protection Class: IP65

Weight: 5.0 kg

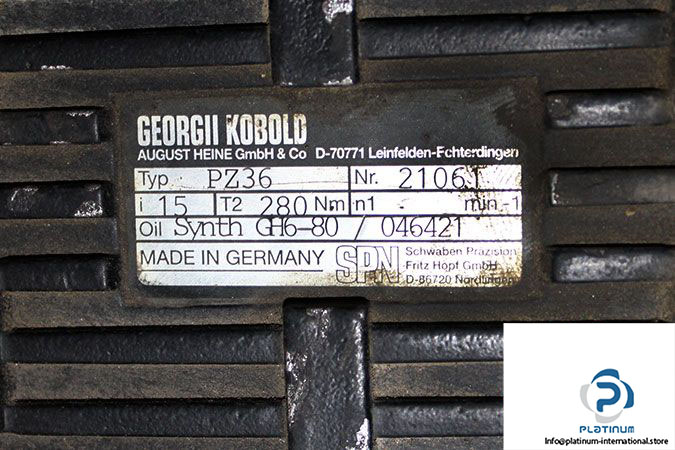

Attachment: GEORGII KOBOLD PZ36 GEARED SERVO MOTOR

Manufacturer: August Heine Gmbh & Co / Georgii Kobold

Type: Geared Servo Motor

Model: PZ36

Ratio: 15

Torque: 280 Nm

Oil Synth: GH6-80 / 045421
