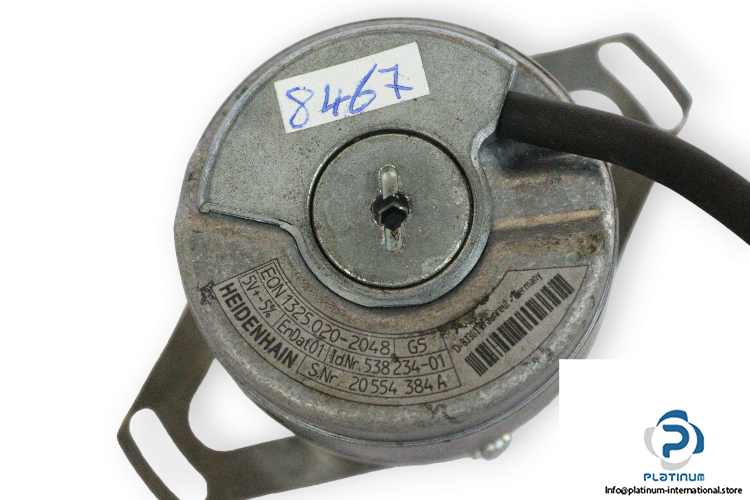

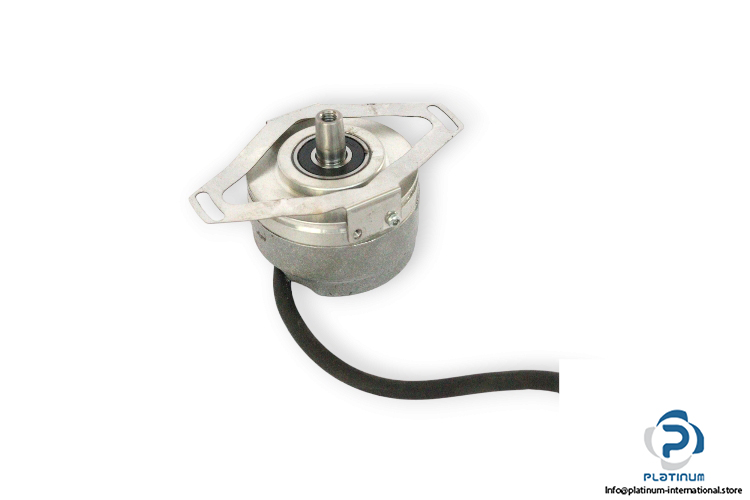

HEIDENHAIN EQN1325.020-2048 ROTARY ENCODER
The HEIDENHAIN EQN1325.020-2048 is a high-precision rotary encoder designed for demanding industrial automation systems requiring accurate positioning and speed feedback. Built with advanced EnDat01 interface and robust environmental tolerance, it offers exceptional performance in motion control systems.
Manufacturer: HEIDENHAIN
Type: Rotary Encoder
Model: EQN1325.020-2048
ID No.: 538 234-01
Serial No.: 20554 384 A
Technical Information
- Max Electrically Permissible Speed: 12,000 rpm
- Calculation Time: 5 µs
- Incremental Signals: 1 VPP1
- Line Count: 2048
- Supply Voltage: 5 V DC
- Designation: EnDat01
- Position Resolution: 8192 (13 bits)
- Revolutions: 4096 (12 bits)
- Operating Temperature: -40 / 115 °C
