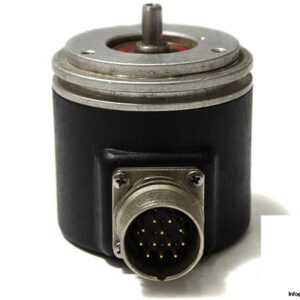

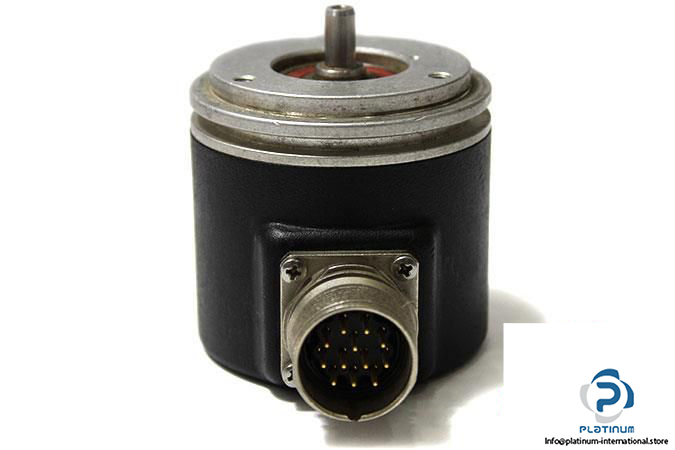

HEIDENHAIN ROD 426.001B-400 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426.001B-400 is a high-precision incremental encoder engineered for speed and accuracy in motion control applications. Featuring robust construction and a compact design, this encoder is ideal for demanding industrial environments.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

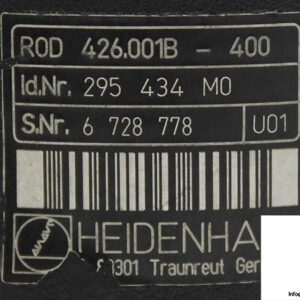

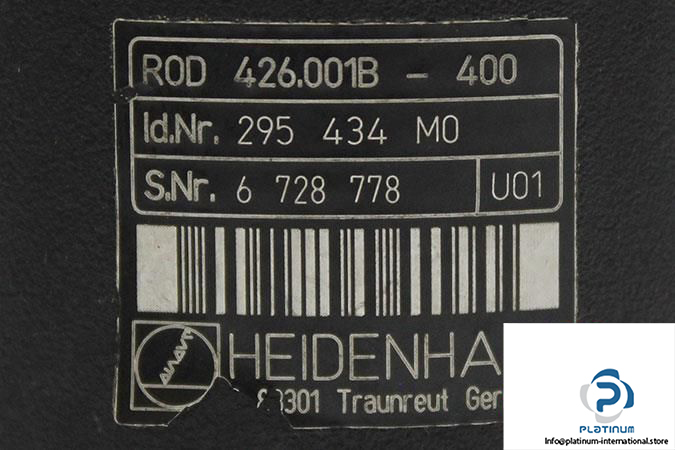

Model: ROD 426.001B-400
ID No.: 295 434 M0
Serial No.: 6 728 778

Technical Information

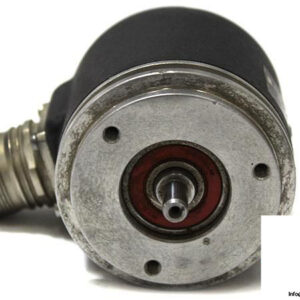

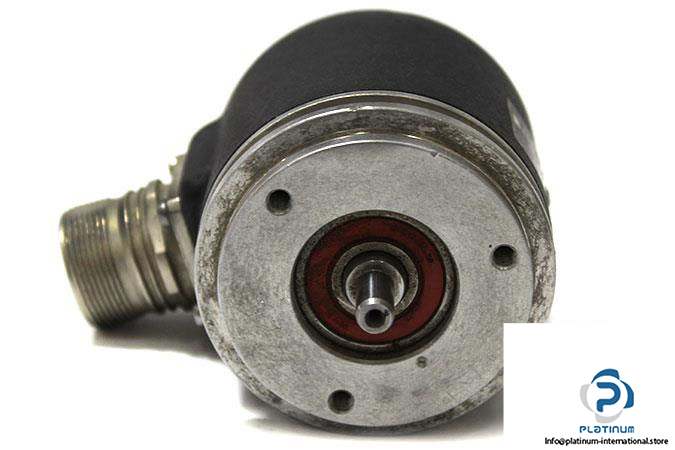

• Flange Design: Synchro Flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 400 Pulses per Revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max. Speed: 16,000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP67 at Housing, IP64 at Shaft Inlet
• Max. Temperature: 100¯°C
